Why Choose the Carlo Gavazzi PA18CLD04TOM6SA Photoelectric Sensor?

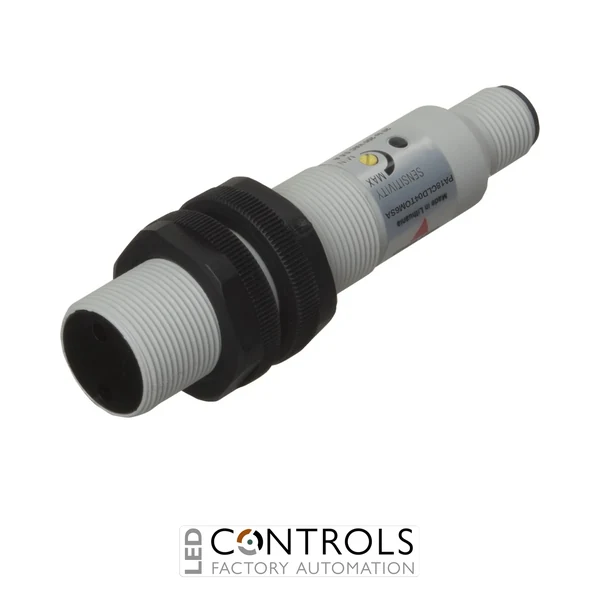

The Carlo Gavazzi PA18CLD04TOM6SA is a compact diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial automation, conveying and machine control applications. As part of the Carlo Gavazzi PA18 series, it combines an industrial-standard M18 cylindrical threaded housing with straightforward two-wire AC switching.
This sensor uses modulated infrared light at 880 nm to detect light reflected directly from the target object, eliminating the need for a separate reflector or receiver. Its normally open (NO) output and light-switching sensing mode provide a practical solution for detecting products, components and materials in automated machinery.
With a rated operating distance of up to 400 mm, a 20–250 V AC supply, an M12 connector and IP67 protection, the PA18CLD04TOM6SA is well suited to packaging equipment, conveyors, production machinery and general factory automation.
Key Advantages
- Diffuse-reflective sensing detects targets without requiring a separate reflector.
- 0–400 mm rated operating distance supports short-range industrial detection tasks.
- 20–250 V AC operating range provides flexible integration with industrial control circuits.
- Two-wire normally open output provides straightforward switching.
- M12 plug connection enables convenient installation, servicing and sensor replacement.
- Compact M18 threaded cylindrical housing suits standard machine mounting arrangements.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi PA18 series.
- Diffuse-reflective photoelectric sensing principle.
- 0–400 mm rated operating distance.
- Modulated infrared light at 880 nm.
- 20–250 V AC supply voltage.
- Two-wire normally open (NO) output.
- Light-switching sensing mode.
- 20 Hz maximum switching frequency.
- M12 4-pin male connector.
- M18 threaded PBTP plastic housing.
- Adjustable sensitivity for application setup.
- IP67 degree of protection.
Reliable Diffuse-Reflective Detection for Industrial Machinery
Diffuse-reflective photoelectric sensors transmit light towards a target and monitor the light reflected directly back to the receiver. When sufficient reflected light is detected, the output changes state, allowing machinery to identify the presence or position of an object without physical contact or a separate reflector.
The PA18CLD04TOM6SA combines a useful 400 mm sensing range with an industrial M18 housing, wide AC supply range and detachable M12 connection. Its compact construction and IP67 protection make it a practical general-purpose sensor for reliable detection within automated production equipment.
Typical Applications
- Conveyor object and package detection.
- Packaging and production machinery.
- Component presence and position detection.
- Material handling systems.
- Assembly and manufacturing equipment.
- Product counting applications.
- General industrial automation and machine building.
