Why Choose the Carlo Gavazzi PA18CLR30TOM6 Photoelectric Sensor?

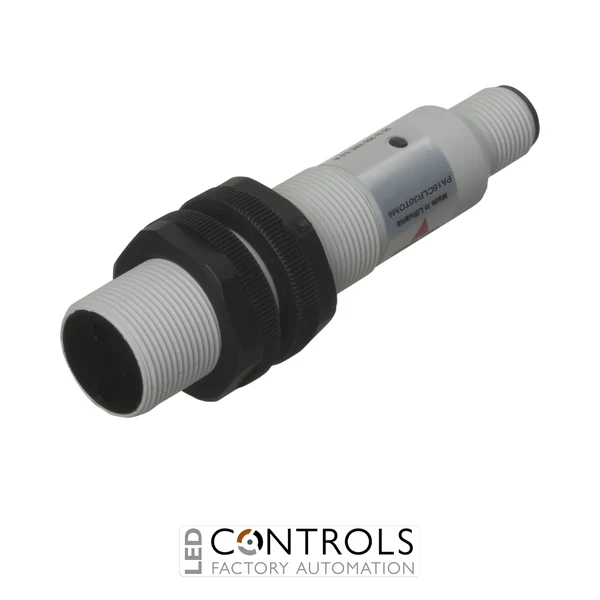

The Carlo Gavazzi PA18CLR30TOM6 is a compact and dependable retro-reflective photoelectric sensor designed for reliable object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PA18 series, it combines an industry-standard M18 cylindrical plastic housing with simple two-wire AC operation and convenient plug-in connectivity.
This sensor uses 880 nm modulated infrared light and a separate reflector to monitor a light path, detecting an object when that reflected beam is interrupted. Its normally open SCR output provides straightforward switching for industrial control circuits, while LED output indication and strong immunity to ambient light support dependable operation.
With a sensing range of up to 3,000 mm, a 20–250 V AC supply and a 4-pin M12 male connector, the PA18CLR30TOM6 is well suited to conveyors, packaging equipment, production machinery and general material handling applications requiring a compact retro-reflective sensor.
Key Advantages
- Compact M18 retro-reflective photoelectric sensor for industrial automation.
- Long sensing range of up to 3,000 mm.
- Wide 20–250 V AC operating range for industrial control circuits.
- Two-wire normally open SCR output for straightforward switching.
- 4-pin M12 male connector enables convenient installation and sensor replacement.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi PA18 series.
- Retro-reflective sensing principle.
- 0–3,000 mm sensing range.
- 880 nm modulated infrared light source.
- Normally open SCR output.
- 20–250 V AC supply voltage.
- Maximum load current of 500 mA.
- Maximum switching frequency of 20 Hz.
- M18 cylindrical threaded PBTP housing.
- 4-pin M12 male connector.
- LED output indication for convenient operating status monitoring.
- IP67 degree of protection.
Reliable Retro-Reflective Detection for Industrial Automation
Retro-reflective photoelectric sensors transmit light towards a reflector positioned opposite the sensor and monitor the returned beam. When an object passes between the sensor and reflector, the returning light is interrupted, allowing the sensor to provide dependable non-contact presence detection over comparatively long distances.
The Carlo Gavazzi PA18 series is designed for general-purpose industrial sensing where compact dimensions, straightforward installation and dependable performance are required. The PA18CLR30TOM6 combines infrared retro-reflective sensing with AC two-wire switching and an M12 connector, making it particularly convenient for machine builders and automation engineers.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Object presence and position detection.
- Product counting on automated production lines.
- Machine sequencing and process control.
- Warehouse and logistics automation.
