Why Choose the Carlo Gavazzi PA18CRD08PASA Photoelectric Sensor?

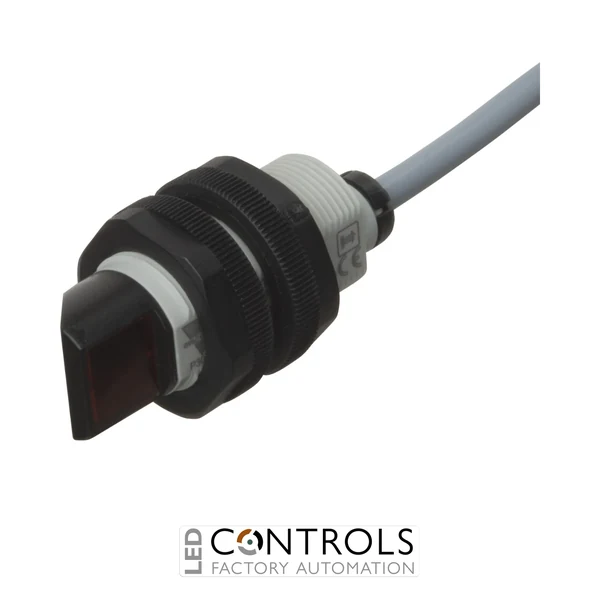

The Carlo Gavazzi PA18CRD08PASA is a compact and reliable M18 diffuse-reflective photoelectric sensor designed for accurate object detection in industrial automation and machine control applications. Part of the Carlo Gavazzi PA18 photoelectric sensor series, it provides dependable optical sensing performance with a robust cylindrical housing and flexible integration options for modern industrial systems.
This sensor uses polarity-free red modulated light technology to detect objects without physical contact and features a PNP complementary NO+NC output configuration for versatile connection to PLCs, controllers and automation equipment.
With an M18 cylindrical threaded housing, 800 mm sensing range, 10–30 V DC supply and 2 m cable connection, the PA18CRD08PASA is suitable for conveyors, packaging machinery, production lines and industrial process monitoring applications.
Key Advantages
- Compact M18 diffuse-reflective photoelectric sensor design.
- 800 mm sensing range for reliable object detection.
- PNP NO+NC complementary output for flexible automation integration.
- 2 m cable connection simplifies installation.
- IP67 / IP69K protection rating suitable for demanding industrial environments.
- ECOLAB approved construction for applications requiring enhanced cleaning resistance.
Key Features
- Carlo Gavazzi PA18 series photoelectric sensor.
- M18 radial cylindrical threaded barrel housing.
- Diffuse-reflective optical sensing technology.
- Polarity-free red modulated light, 625 nm.
- PNP complementary NO + NC switching output.
- 10–30 V DC operating supply.
- 2 m fixed cable connection.
- Light/dark switching operation.
- Adjustable sensitivity for application flexibility.
Reliable Object Detection for Industrial Automation
Photoelectric sensors such as the Carlo Gavazzi PA18CRD08PASA provide fast and accurate contactless object detection using optical signals. This allows automated machinery to monitor product position, presence and movement while reducing mechanical wear compared with traditional contact-based sensors.
The PA18 series is designed for machine builders and automation engineers requiring compact, dependable sensing solutions. Its M18 housing, adjustable sensing capability and flexible PNP output configuration allow easy integration into industrial control systems.
Typical Applications
- Industrial conveyor systems.
- Packaging and filling machinery.
- Assembly and production lines.
- Material handling equipment.
- Object presence and position monitoring.
- Industrial automation and process control systems.
