Why Choose the Carlo Gavazzi PA18CRR50NAM1SA Photoelectric Sensor?

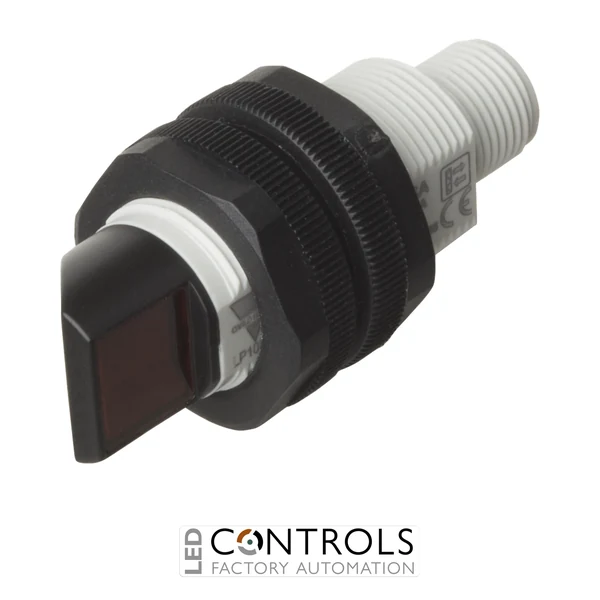

The Carlo Gavazzi PA18CRR50NAM1SA is a compact retro-reflective photoelectric sensor designed for dependable non-contact object detection in industrial automation, conveying and machine control applications. As part of the Carlo Gavazzi PA18 series, it combines a space-saving M18 cylindrical plastic housing with complementary transistor outputs for flexible automation integration.
The sensor operates with a suitable reflector, transmitting modulated light towards the reflector and monitoring the returned beam. When a target interrupts the optical path, the sensor changes its output state, providing reliable presence detection across conveyors, packaging machinery and automated production equipment.
With a sensing distance of up to 5000 mm, a 10–30 V DC supply, complementary NPN NO + NC outputs and an M12 plug connection, the PA18CRR50NAM1SA provides a versatile sensing solution for industrial machinery requiring reliable medium- to long-range object detection.
Key Advantages
- Retro-reflective sensing provides dependable object detection using a single sensor and reflector.
- Up to 5000 mm sensing distance supports medium- and long-range industrial applications.
- 10–30 V DC operating range suits standard industrial automation power supplies.
- Complementary NPN NO + NC outputs provide flexible switching options for PLC and control inputs.
- M12 plug connection simplifies installation, servicing and sensor replacement.
- Compact M18 cylindrical threaded housing supports straightforward machine mounting.
- Designed for reliable operation in demanding industrial environments.
Key Features
- Carlo Gavazzi PA18 series.
- Retro-reflective photoelectric sensing principle.
- Radial optical configuration.
- Up to 5000 mm sensing distance.
- 10–30 V DC supply voltage.
- NPN complementary NO + NC outputs.
- Light-on and dark-on switching capability.
- M12 connector for industrial sensor cabling.
- M18 cylindrical threaded plastic housing.
- Adjustable sensitivity for application-specific setup.
- LED indication for convenient sensor status monitoring.
Reliable Retro-Reflective Detection for Industrial Machinery
Retro-reflective photoelectric sensors transmit light towards a separate reflector and monitor the returned beam. When an object passes between the sensor and reflector, the beam is interrupted and the output changes state, allowing automated machinery to identify products and materials without physical contact.
The PA18CRR50NAM1SA combines a long sensing distance with complementary NPN outputs, radial optics and an M12 connection. This configuration provides machine builders and automation engineers with a compact and flexible solution for object presence, counting and position detection in industrial equipment.
Typical Applications
- Conveyor object and package detection.
- Packaging and bottling machinery.
- Material handling and logistics systems.
- Product counting and presence detection.
- Automated production and assembly equipment.
- Machine position and process monitoring.
- General industrial automation and machine building.
