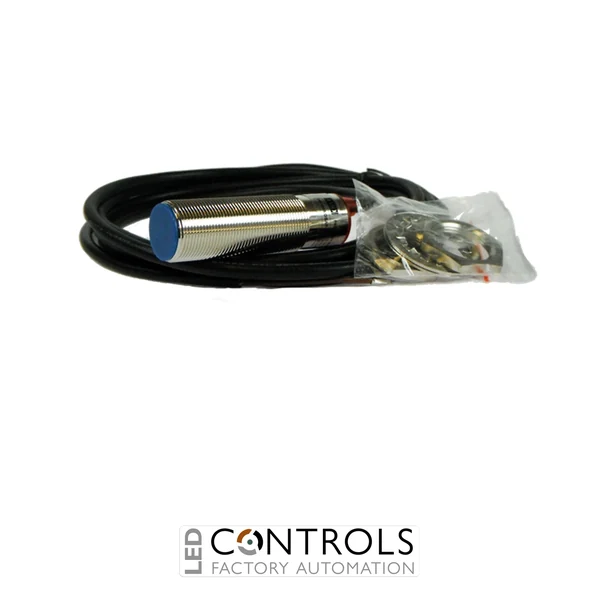

Why Choose the IMO PB1204/DSAP-A-30 Inductive Proximity Switch?
The IMO PB1204/DSAP-A-30 is a compact and reliable inductive proximity switch designed for accurate non-contact detection of metallic objects in industrial automation, machinery and control applications. As part of the IMO PB inductive sensor series, it provides dependable sensing performance with a robust design suited to demanding industrial environments.
This shielded M12 proximity switch features a short body design, nickel-plated brass housing and a pre-wired cable connection for straightforward installation in automation systems. Its compact construction, LED indication and integrated protection features make it suitable for reliable position detection in production equipment and industrial machinery.
With a 4 mm sensing distance, 10–36 V DC supply and NO PNP output, the PB1204/DSAP-A-30 is ideal for detecting metal components in machine control, assembly systems and industrial automation applications.
Key Advantages
- Compact M12 inductive proximity switch for industrial automation.
- 4 mm sensing distance for reliable metal object detection.
- Shielded sensor construction suitable for flush mounting applications.
- NO PNP switching output for compatibility with industrial control systems.
- Short style body design for installations where space is limited.
- Robust IP67 protection rating for industrial environments.
Key Features
- IMO PB inductive proximity switch series.
- M12 threaded sensor body.
- 4 mm nominal sensing distance.
- 10–36 V DC operating voltage.
- NO PNP transistor output.
- Shielded construction for close mounting applications.
- 2 m pre-wired cable connection.
- Short body format with LED status indication.
Reliable Object Detection for Industrial Automation
Inductive proximity switches such as the IMO PB1204/DSAP-A-30 provide accurate non-contact detection of metallic targets without mechanical contact. This improves reliability and reduces wear compared with traditional mechanical sensing methods.
The PB series is designed for integration into industrial machinery, production equipment and automation systems where dependable position monitoring and consistent switching performance are required. The compact short body format allows installation in applications with restricted mounting space.
Typical Applications
- Industrial automation machinery.
- Assembly and production lines.
- Position detection systems.
- Material handling equipment.
- Machine tooling applications.
- OEM machinery and control systems.
