Why Choose the IMO PB1808/DSAP-A Inductive Proximity Switch?
The IMO PB1808/DSAP-A is a reliable and compact inductive proximity sensor designed for accurate object detection in industrial automation, machinery and control systems. As part of the IMO PB Series proximity switch range, it provides dependable non-contact sensing for demanding industrial applications where precise position detection is required.

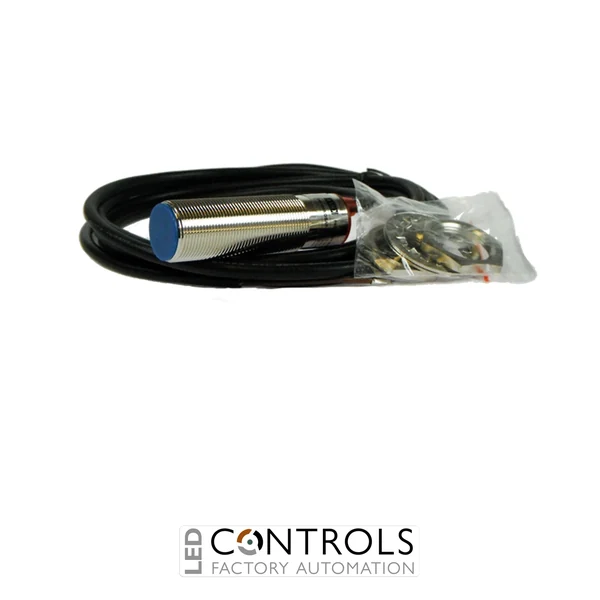

This sensor features a shielded M18 threaded cylindrical design, a robust metal housing and a 2 m pre-wired cable connection for straightforward installation. The shielded construction allows flush mounting while maintaining reliable detection performance in industrial environments.
With a 24 V DC supply, PNP normally open output, 8 mm sensing distance and IP67 protection rating, the PB1808/DSAP-A is suitable for machinery automation, position monitoring and industrial sensing applications requiring reliable object detection.
Key Advantages
- Compact M18 inductive proximity sensor designed for industrial automation.
- 8 mm sensing distance for reliable metal object detection.
- PNP normally open output compatible with common control systems.
- IP67 protection rating for demanding industrial environments.
- Shielded design enables flush mounting applications.
- Pre-wired 2 m cable connection simplifies installation.
Key Features
- IMO PB Series inductive proximity switch.
- M18 × 1 threaded cylindrical sensor body.
- Shielded flush-mount design.
- PNP normally open switching output.
- 8 mm nominal sensing distance (Sn).
- 24 V DC operating voltage.
- 3-wire cable connection with 2 m cable length.
- LED indication and protection against short circuit, overload and reverse polarity.
Reliable Object Detection for Industrial Automation
Inductive proximity sensors such as the IMO PB1808/DSAP-A detect metallic objects without physical contact, making them ideal for monitoring position, movement and presence in automated machinery. Their solid-state switching technology provides fast and reliable operation with minimal maintenance requirements.
The IMO PB Series is designed for industrial engineers and machine builders requiring dependable sensing solutions. Its rugged construction, compact M18 format and high environmental protection rating allow integration into a wide range of automation systems.
Typical Applications
- Industrial automation and machine control systems.
- Position detection on production machinery.
- Material handling equipment.
- Conveyor and assembly systems.
- Packaging and processing machinery.
- General metal object detection applications.
