Why Choose the Carlo Gavazzi PC50CND10BA Photoelectric Sensor?

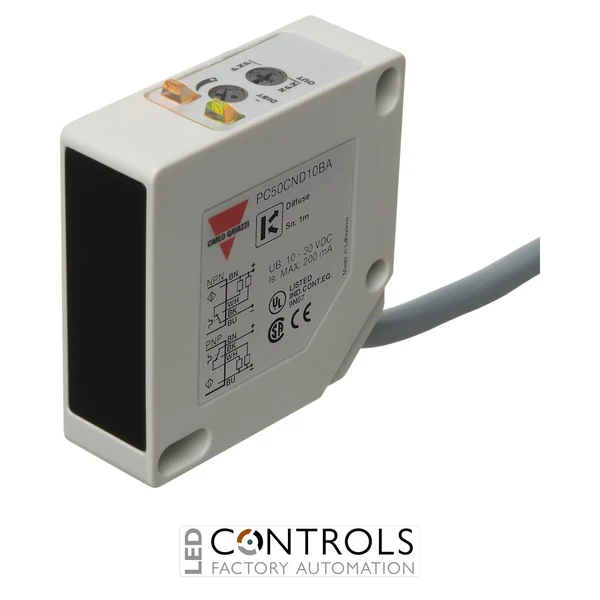

The Carlo Gavazzi PC50CND10BA is a compact and versatile diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial automation and machine control applications. As part of the Carlo Gavazzi PC50 series, it combines an adjustable long sensing range, programmable transistor output and robust IP67 construction in a compact rectangular housing.
The PC50CND10BA uses modulated infrared light at 880 nm to detect light reflected directly from the target, eliminating the need for a separate reflector or receiver. Its adjustable sensitivity and selectable light/dark switching provide flexibility when detecting different objects and integrating the sensor into automated machinery.
With a rated operating distance of 10–1000 mm, a 10–30 V DC supply and configurable PNP/NPN complementary NO+NC output, the PC50CND10BA is suitable for a broad range of PLC and industrial control applications. This cable-connected version is supplied with an integral 2 m cable for straightforward hard-wired installation.
Key Advantages
- Reliable diffuse-reflective photoelectric sensing without requiring a separate reflector.
- Adjustable sensing range up to 1000 mm provides flexible installation and target detection.
- PNP/NPN complementary NO+NC output supports versatile industrial control integration.
- Selectable light/dark switching allows the switching behaviour to suit the application.
- 2 m integral cable provides a convenient hard-wired connection.
- IP67 protection supports reliable operation in demanding industrial environments.
Key Features
- Carlo Gavazzi PC50 series photoelectric sensor.
- Diffuse-reflective sensing principle.
- 10–1000 mm rated operating distance.
- Adjustable sensitivity for flexible target detection.
- PNP/NPN transistor switching output.
- Complementary NO+NC output function.
- 10–30 V DC rated power supply.
- Selectable light/dark switching.
- Modulated infrared light source at 880 nm.
- 500 Hz operating frequency for responsive object detection.
- LED indication for output, power and signal stability.
- Reverse-polarity, short-circuit and transient protection.
- Compact 17 × 50 × 50 mm rectangular housing.
Reliable Photoelectric Detection for Industrial Automation
Diffuse-reflective photoelectric sensors such as the Carlo Gavazzi PC50CND10BA transmit light towards the target and detect the reflected signal using the transmitter and receiver contained within the same housing. This provides convenient non-contact detection without requiring a separate reflector or opposing receiver.
The PC50 series is designed for machine builders and automation engineers requiring compact dimensions, adjustable sensing and flexible electrical configuration. The PC50CND10BA combines a sensing range of up to 1 m with programmable PNP/NPN switching, complementary NO+NC operation and IP67 protection for dependable use in industrial machinery.
Typical Applications
- Industrial conveyor and material handling systems.
- Packaging and production machinery.
- Object presence and position detection.
- Parts counting and product detection systems.
- Assembly and automated manufacturing lines.
- Warehousing and logistics equipment.
- OEM machinery and industrial automation systems.
