Why Choose the Carlo Gavazzi PC50CND10BAM1 Diffuse-Reflective Photoelectric Sensor?

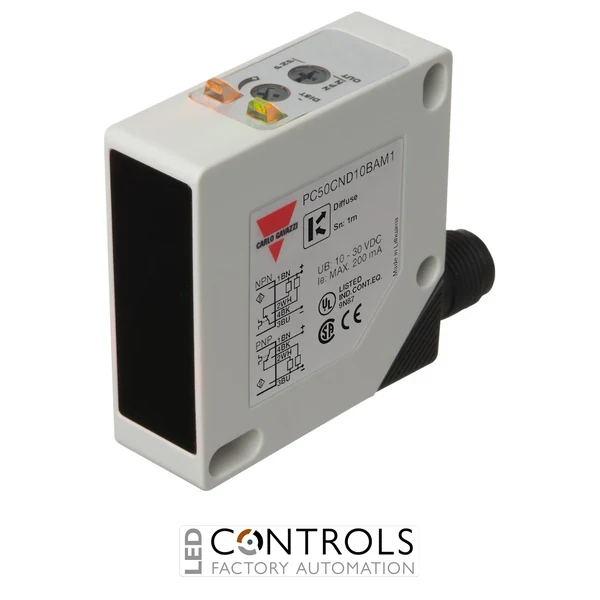

The Carlo Gavazzi PC50CND10BAM1 is a compact and versatile diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PC50 photoelectric sensor series, it combines a long adjustable sensing range with flexible transistor outputs and a robust rectangular housing.
This sensor provides an adjustable rated operating distance from 10–1000 mm and uses 880 nm modulated infrared light to detect objects directly without requiring a separate reflector or receiver. Adjustable sensitivity allows the sensor to be configured for different targets and installation conditions, making it suitable for a broad range of industrial detection tasks.
With a 10–30 V DC supply, selectable PNP/NPN complementary NO+NC outputs, light/dark switching and an M12 connector, the PC50CND10BAM1 provides considerable installation flexibility. Its compact 17 × 50 × 50 mm housing and IP67 protection support dependable operation in demanding industrial environments.
Key Advantages
- Versatile diffuse-reflective photoelectric sensing without a separate reflector or receiver.
- Adjustable 10–1000 mm sensing distance for flexible object detection.
- PNP/NPN complementary NO+NC outputs simplify integration with different control systems.
- 880 nm modulated infrared light provides dependable industrial sensing.
- Convenient M12 plug connection enables quick installation and replacement.
- Robust IP67 protection rating for industrial environments.
Key Features
- Carlo Gavazzi PC50 photoelectric sensor series.
- Diffuse-reflective sensing principle.
- 10–1000 mm adjustable rated operating distance.
- 880 nm modulated infrared light source.
- 10–30 V DC operating supply.
- PNP/NPN transistor output.
- Complementary NO+NC output function.
- Selectable light/dark switching.
- M12 connector electrical connection.
- 500 Hz operating frequency.
- Compact rectangular plastic housing.
- IP67 degree of protection.
Reliable Object Detection for Industrial Automation
Diffuse-reflective photoelectric sensors emit light towards the target and detect the portion reflected back from its surface. Because the emitter and receiver are incorporated into the same housing, this sensing principle enables straightforward installation without requiring a separate reflector or opposing sensor.
The PC50CND10BAM1 combines an adjustable 1 m maximum sensing distance with flexible PNP/NPN outputs, selectable switching functions and sensitivity adjustment. Its compact PC50 housing, M12 connection and protective circuitry make it a practical choice for machine builders and automation engineers requiring reliable general-purpose object detection.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Product presence and position detection.
- Counting and object detection systems.
- Assembly and manufacturing equipment.
- OEM machinery and industrial automation systems.
