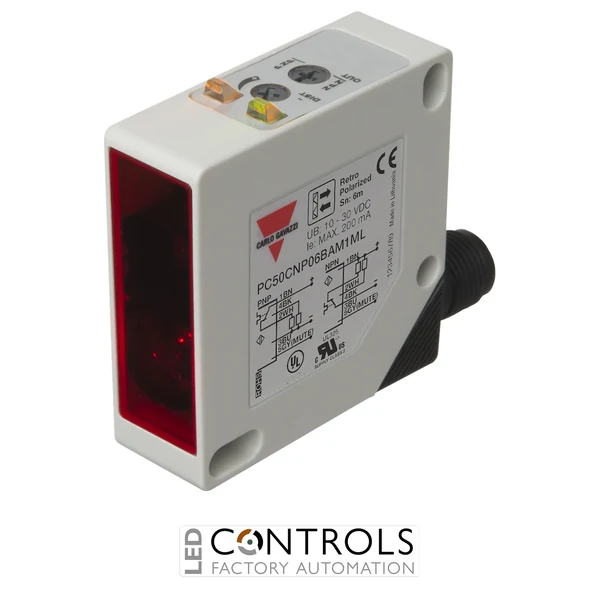

Why Choose the Carlo Gavazzi PC50CNP06BAM1ML Photoelectric Sensor?
The Carlo Gavazzi PC50CNP06BAM1ML is a robust and versatile polarised retro-reflective photoelectric sensor designed for reliable object detection in industrial automation and control systems. As part of the Carlo Gavazzi PC50 photoelectric sensor series, it combines a long adjustable sensing range with complementary switching outputs, polarised red light and a convenient M12 connector.
This sensor provides a sensing range of up to 6 m when used with a suitable reflector. Its 660 nm polarised red modulated light helps provide dependable detection while reducing the risk of false switching from reflective objects. Sensitivity is adjustable, allowing the sensor to be configured for the requirements of the application.
With a 10–30 V DC supply, complementary NO+NC outputs, light and dark switching modes and a Mute Low function, the PC50CNP06BAM1ML offers flexible integration into industrial control systems. Its compact 17 × 50 × 50 mm rectangular housing, M12 plug connection and IP67 protection rating make it suitable for demanding machinery and automation installations.
Key Advantages
- Long-range polarised retro-reflective sensing up to 6 m.
- Complementary NO+NC outputs provide flexible control options.
- 10–30 V DC operating voltage suitable for industrial control systems.
- Mute Low function for applications requiring external muting control.
- 660 nm polarised red modulated light supports reliable object detection.
- Adjustable sensitivity for application-specific configuration.
- M12 connector enables convenient installation and replacement.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi PC50 photoelectric sensor series.
- 6 m adjustable sensing range.
- Polarised retro-reflective sensing principle.
- Complementary normally open and normally closed (NO+NC) outputs.
- Light and dark switching operation.
- 10–30 V DC rated operational voltage.
- 660 nm polarised red light.
- 500 Hz operating frequency.
- Mute Low functionality.
- M12 connector electrical connection.
- Compact rectangular plastic housing.
- IP67 degree of protection.
Reliable Polarised Retro-Reflective Detection for Industrial Automation
Polarised retro-reflective photoelectric sensors operate by transmitting a beam of light towards a reflector and monitoring the returned light. When an object interrupts the optical path, the sensor changes its switching state. Polarisation helps the sensor distinguish light returned by the intended reflector from reflections produced by shiny or reflective objects, improving detection reliability in industrial applications.
The PC50 series is designed for flexible integration into machinery and automation systems. The PC50CNP06BAM1ML combines adjustable long-range sensing, complementary outputs, light and dark switching, Mute Low functionality and a standard M12 connection, providing a versatile sensing solution for production equipment, conveyors and material handling systems.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Object presence and position detection.
- Automated handling and transfer equipment.
- Industrial doors and access systems.
- Manufacturing and assembly machinery.
