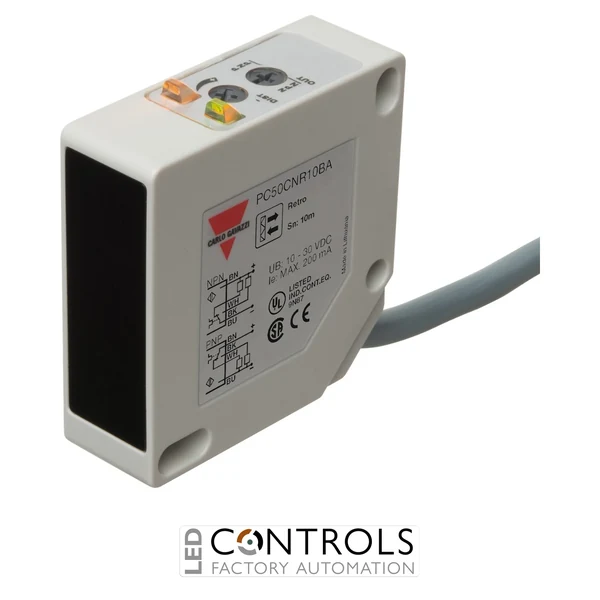

Why Choose the Carlo Gavazzi PC50CNR10BA Photoelectric Sensor?
The Carlo Gavazzi PC50CNR10BA is a compact and reliable retro-reflective photoelectric sensor designed for long-range object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PC50 photoelectric sensor series, it provides an adjustable sensing range of up to 10 m using modulated infrared light and a reflector-based sensing principle.
The PC50CNR10BA combines a selectable NPN/PNP transistor output with complementary NO + NC switching, allowing flexible integration with PLCs, machine controllers and industrial automation equipment. Selectable light and dark switching further simplifies adaptation to different machine-control and detection requirements.
With a 10–30 V DC supply, 880 nm infrared light and a 500 Hz operating frequency, the PC50CNR10BA provides dependable non-contact detection over extended distances. This version features a 2 m fixed cable, while its compact 17 × 50 × 50 mm plastic housing and IP67 protection make it suitable for demanding industrial installations.
Key Advantages
- Long-range retro-reflective photoelectric sensing up to 10 m.
- Adjustable sensitivity for accurate application-specific detection.
- Selectable NPN/PNP transistor output for flexible PLC and controller compatibility.
- Complementary NO + NC output functions provide versatile switching options.
- Selectable light and dark switching for different control requirements.
- Fast 500 Hz operating frequency supports high-speed automated processes.
- IP67 protection and a robust compact housing for industrial environments.
Key Features
- Carlo Gavazzi PC50 photoelectric sensor series.
- Retro-reflective sensing principle.
- Adjustable sensing range from approximately 100 mm to 10 m.
- 880 nm modulated infrared light.
- Selectable NPN/PNP transistor output.
- Complementary normally open and normally closed outputs.
- Selectable light/dark switching.
- 500 Hz operating frequency.
- 2 m fixed cable connection.
- Compact rectangular plastic housing.
- IP67 ingress protection.
Reliable Long-Range Retro-Reflective Detection
Retro-reflective photoelectric sensors transmit light towards a separate reflector and monitor the returned beam. When an object interrupts the light path, the sensor changes its output state, providing reliable non-contact detection while requiring electrical wiring at only the sensor side of the installation.
The Carlo Gavazzi PC50 series combines compact construction with adjustable sensitivity and flexible transistor outputs. With its 10 m maximum sensing distance, the PC50CNR10BA is particularly suitable for conveyors, handling systems and industrial machinery where objects must be detected across relatively large gaps.
Typical Applications
- Long-range conveyor object detection.
- Packaging and production machinery.
- Material handling and logistics systems.
- Component presence and position monitoring.
- Automated counting and process-control systems.
- PLC-controlled machinery and factory automation.
