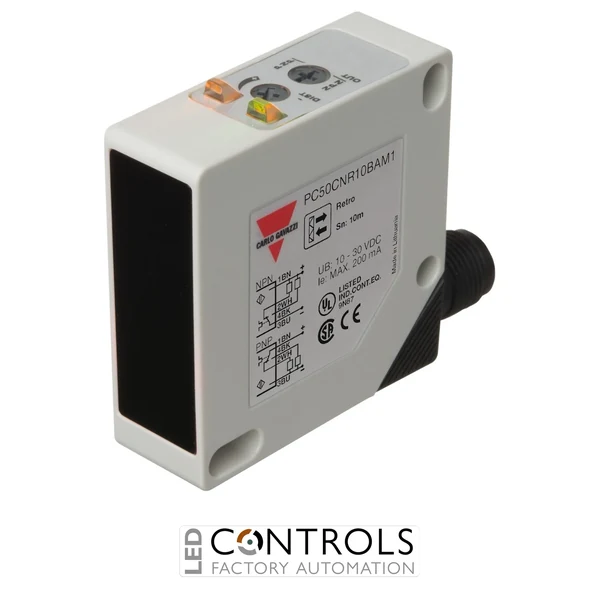

Why Choose the Carlo Gavazzi PC50CNR10BAM1 Photoelectric Sensor?
The Carlo Gavazzi PC50CNR10BAM1 is a compact and reliable retro-reflective photoelectric sensor designed for long-range object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PC50 photoelectric sensor series, it provides an adjustable sensing range of up to 10 m using modulated infrared light and a reflector-based sensing principle.
The PC50CNR10BAM1 combines a selectable NPN/PNP transistor output with complementary NO + NC switching, allowing flexible integration with PLCs, machine controllers and industrial automation equipment. Selectable light and dark switching and adjustable sensitivity enable the sensor to be configured for different target and installation requirements.
With a 10–30 V DC supply, 880 nm infrared light and a fast 500 Hz operating frequency, the PC50CNR10BAM1 provides dependable non-contact detection over extended distances. This plug-connected version features an M12 connector, while its compact 17 × 50 × 50 mm plastic housing and IP67 protection support installation in demanding industrial environments.
Key Advantages
- Long-range retro-reflective photoelectric sensing up to 10 m.
- Adjustable sensitivity for application-specific object detection.
- Selectable NPN/PNP transistor output for flexible PLC and controller compatibility.
- Complementary NO + NC switching functions provide versatile control options.
- Selectable light and dark switching for different machine-control requirements.
- Fast 500 Hz operating frequency supports rapid automated processes.
- M12 connector simplifies installation, maintenance and sensor replacement.
- IP67 protection supports dependable industrial operation.
Key Features
- Carlo Gavazzi PC50 photoelectric sensor series.
- Retro-reflective sensing principle.
- Adjustable sensing range from approximately 100 mm to 10 m.
- 880 nm modulated infrared light.
- Selectable NPN/PNP transistor output.
- Complementary normally open and normally closed outputs.
- Selectable light/dark switching.
- 200 mA maximum output current.
- 1 ms response time.
- 500 Hz operating frequency.
- M12 plug connection.
- Compact 17 × 50 × 50 mm rectangular housing.
- IP67 ingress protection.
Reliable Long-Range Retro-Reflective Detection
Retro-reflective photoelectric sensors transmit light towards a separate reflector and monitor the returned beam. When an object interrupts the optical path, the sensor changes its output state, providing reliable non-contact detection while requiring an electrical connection only at the sensor side of the installation.
The Carlo Gavazzi PC50 series combines compact construction with adjustable sensitivity and flexible transistor outputs. With its 10 m maximum sensing range, fast response and M12 connection, the PC50CNR10BAM1 is particularly suitable for conveyors, material handling equipment and automated machinery requiring dependable detection across relatively large distances.
Typical Applications
- Long-range conveyor object detection.
- Packaging and production machinery.
- Material handling and logistics systems.
- Component presence and position monitoring.
- Automated counting and process-control systems.
- Warehouse and handling equipment.
- PLC-controlled machinery and factory automation.
