Why Choose the Carlo Gavazzi PC50CNT20BAM1 Photoelectric Sensor?

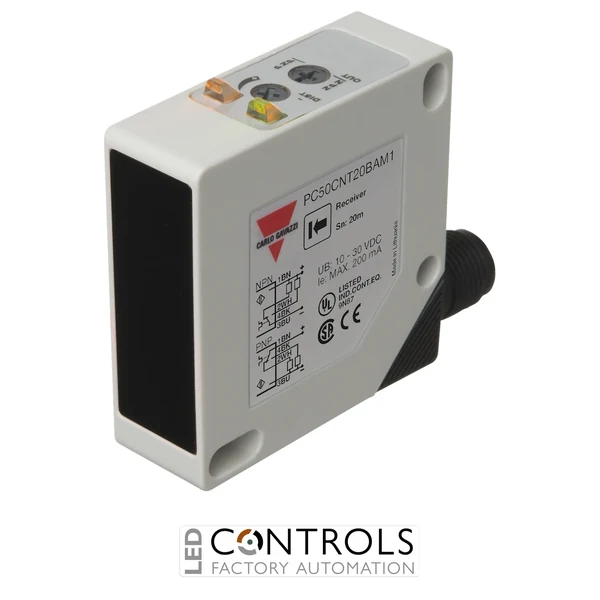

The Carlo Gavazzi PC50CNT20BAM1 is a versatile through-beam photoelectric receiver designed for reliable long-range object detection in industrial automation and machinery. As part of the Carlo Gavazzi PC50 photoelectric sensor series, it combines a long adjustable sensing range with selectable transistor outputs, complementary switching functionality and a convenient M12 connector.
This receiver provides an adjustable sensing range of up to 20 m when paired with a compatible PC50 through-beam emitter. Its 950 nm modulated infrared light sensing system supports dependable detection over long distances, while adjustable sensitivity allows the sensor to be configured for different operating conditions and applications.
With a 10–30 V DC supply, selectable NPN/PNP output, NO+NC switching functionality and an M12 plug, the PC50CNT20BAM1 provides flexible integration with PLCs and industrial control equipment. Its compact 17 × 50 × 50 mm reinforced plastic housing and IP67 protection rating make it suitable for demanding production and material handling environments.
Key Advantages
- Long-range through-beam photoelectric sensing up to 20 m.
- Selectable NPN/PNP output provides flexible control system integration.
- NO+NC switching functionality supports different automation requirements.
- 10–30 V DC operating voltage suitable for standard industrial control systems.
- 950 nm modulated infrared light provides dependable optical detection.
- Adjustable sensitivity for application-specific configuration.
- M12 plug connection simplifies installation, replacement and maintenance.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi PC50 photoelectric sensor series.
- 20 m adjustable sensing range.
- Through-beam receiver sensing principle.
- Selectable NPN/PNP transistor output.
- Normally open and normally closed (NO+NC) switching functionality.
- 10–30 V DC rated operational voltage.
- 950 nm modulated infrared light.
- 500 Hz operating frequency.
- Maximum load current up to 200 mA.
- LED indication for output, signal stability and power status.
- M12 connector electrical connection.
- Reverse polarity, short-circuit and transient protection.
- Compact reinforced ABS/polycarbonate housing.
- IP67 degree of protection.
Reliable Long-Range Detection for Industrial Automation
Through-beam photoelectric sensing uses a separate emitter and receiver installed opposite each other. The emitter directs a modulated infrared beam towards the receiver, and an object is detected when it interrupts the optical path. This sensing principle provides excellent reliability and enables significantly longer detection distances than many diffuse or retro-reflective photoelectric sensing arrangements.
The PC50 series is designed for flexible integration into industrial machinery and automation systems. The PC50CNT20BAM1 combines a 20 m adjustable sensing range with selectable NPN/PNP operation, NO/NC switching, status indication and an M12 connection, making it a versatile receiver for conveyors, production machinery and material handling equipment.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Long-range object presence detection.
- Automated handling and transfer equipment.
- Manufacturing and assembly machinery.
- Position and product detection on production lines.
