Why Choose the Carlo Gavazzi PD140FNT60QMU-02C Photoelectric Sensor?

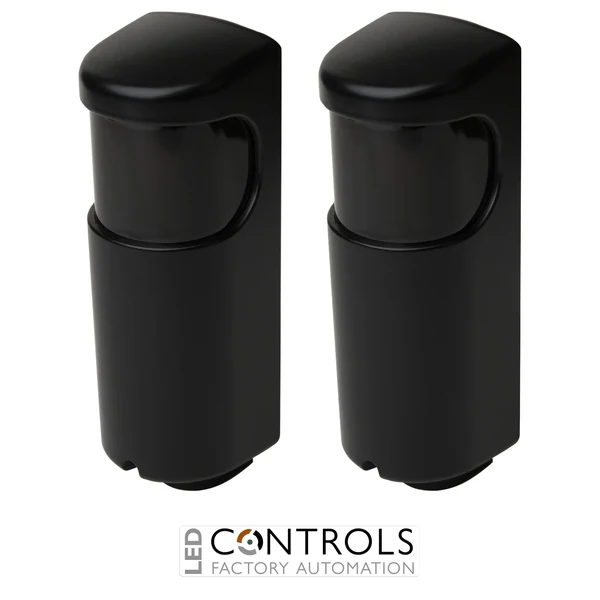

The Carlo Gavazzi PD140FNT60QMU-02C is a robust through-beam photoelectric sensor set comprising a matched emitter and receiver for reliable long-range object detection in industrial automation, door control and access applications. As part of the Carlo Gavazzi PD140 series, it combines a substantial 60 m sensing range with modulated infrared technology and a durable aluminium rectangular housing.
The sensor uses a separate emitter and receiver positioned opposite each other, creating a photoelectric beam across the monitored area. Interruption of this beam provides reliable object detection, while the receiver's SPDT relay output with NO and NC contacts enables straightforward integration with industrial controllers, relays and control circuits.
With a rated 12–24 V AC/DC supply, 850 nm infrared light and selectable light/dark switching, the PD140FNT60QMU-02C provides flexible operation across demanding installations. Both sensor units use screw-terminal connections, and the 51 × 46 × 140 mm aluminium housings provide a rugged platform for industrial use.
Key Advantages
- Long-range through-beam photoelectric detection up to 60 m.
- Supplied as a matched emitter and receiver set.
- SPDT relay output with NO and NC contacts for flexible control integration.
- 12–24 V AC/DC power supply supports both AC and DC control systems.
- Selectable light and dark switching for application-specific operation.
- 850 nm modulated infrared light provides reliable through-beam sensing.
- Robust aluminium rectangular housing for demanding installations.
- Screw-terminal connections simplify permanent industrial wiring.
Key Features
- Carlo Gavazzi PD140 series photoelectric sensor.
- Through-beam emitter and receiver sensing system.
- 60 m maximum sensing distance.
- 850 nm infrared light source.
- SPDT relay output on the receiver.
- Normally open and normally closed contacts.
- Selectable light/dark switching.
- 12–24 V AC/DC rated supply.
- Screw-terminal electrical connections.
- Mute input on the emitter.
- Built-in provision for alignment assistance.
- Black aluminium housing for robust industrial installation.
Reliable Long-Range Through-Beam Detection
Through-beam photoelectric sensing uses separate transmitter and receiver units mounted on opposite sides of the detection area. The emitter generates an infrared beam towards the receiver, and an object is detected when it interrupts that beam. This arrangement provides excellent sensing distance and dependable detection for large openings, access points and industrial machinery.
The Carlo Gavazzi PD140 series is designed for applications requiring robust long-range photoelectric detection. The PD140FNT60QMU-02C combines its 60 m sensing capability with relay switching, AC/DC supply compatibility and an aluminium enclosure, providing a versatile sensing solution for industrial and access-control installations.
Typical Applications
- Industrial door and gate monitoring systems.
- Long-range conveyor object detection.
- Warehouse and material handling systems.
- Access and entrance control applications.
- Large machinery and production-line monitoring.
- Object presence detection across wide openings.
- Industrial automation and process-control systems.
