Why Choose the Carlo Gavazzi PD30CND10PAM5SA Photoelectric Sensor?

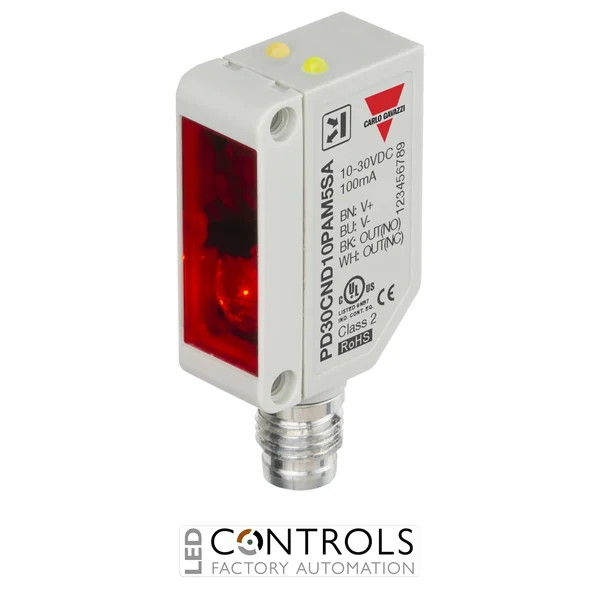

The Carlo Gavazzi PD30CND10PAM5SA is a compact and reliable diffuse-reflective photoelectric sensor designed for accurate object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PD30 photoelectric sensor series, it combines a long sensing range with visible red modulated light, complementary PNP switching outputs and a miniature rectangular housing for straightforward integration into space-constrained equipment.
This sensor provides an adjustable sensing range of up to 1,000 mm and uses 625 nm polarity-free red modulated light. The diffuse-reflective operating principle detects light reflected directly from the target, eliminating the need for a separate reflector or receiver. Sensitivity adjustment by potentiometer provides flexibility when configuring the sensor for different targets and operating conditions.
With a 10–30 V DC supply, PNP normally open and normally closed outputs and a 4-pin M8 connector, the PD30CND10PAM5SA provides flexible integration with PLCs and industrial control systems. Its compact 10 × 30 × 20 mm plastic housing, 1,000 Hz switching frequency and IP67 protection rating make it suitable for demanding production and machine automation environments.
Key Advantages
- Long-range diffuse-reflective sensing up to 1,000 mm.
- PNP complementary NO+NC outputs provide flexible control system integration.
- 10–30 V DC operating voltage suitable for standard industrial automation systems.
- 625 nm visible red modulated light assists alignment and reliable object detection.
- 1,000 Hz switching frequency supports responsive detection in automated machinery.
- Potentiometer sensitivity adjustment for application-specific configuration.
- 4-pin M8 plug connection simplifies installation, replacement and maintenance.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi PD30 photoelectric sensor series.
- 0–1,000 mm rated operating distance.
- Diffuse-reflective photoelectric sensing principle.
- PNP transistor output.
- Complementary normally open and normally closed (NO+NC) outputs.
- Light and dark switching functionality.
- 10–30 V DC rated power supply.
- 625 nm polarity-free red modulated light.
- 1,000 Hz operating frequency.
- Continuous output current up to 100 mA.
- 4-pin M8 connector electrical connection.
- Yellow and green LED indication for output, stability and power status.
- Short-circuit, reverse polarity and transient protection.
- IP67 degree of protection.
Reliable Diffuse-Reflective Detection for Industrial Automation
Diffuse-reflective photoelectric sensors transmit light towards a target and detect the light reflected directly from the object. This provides non-contact object detection without requiring a separate reflector or receiver, making installation particularly convenient where equipment can only be mounted on one side of the detection point.
The PD30 series is designed for compact industrial machinery and automation installations where reliable object detection and flexible control integration are required. The PD30CND10PAM5SA combines an adjustable 1,000 mm sensing range with visible red light, complementary PNP outputs, fast switching and an M8 connection, making it well suited to conveyors, packaging machinery, assembly systems and automated handling equipment.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Object presence and position detection.
- Product counting on automated production lines.
- Automated assembly and handling equipment.
- Component and package detection in manufacturing systems.
