Why Choose the Carlo Gavazzi PD30CNP50PAM5PS Photoelectric Sensor?

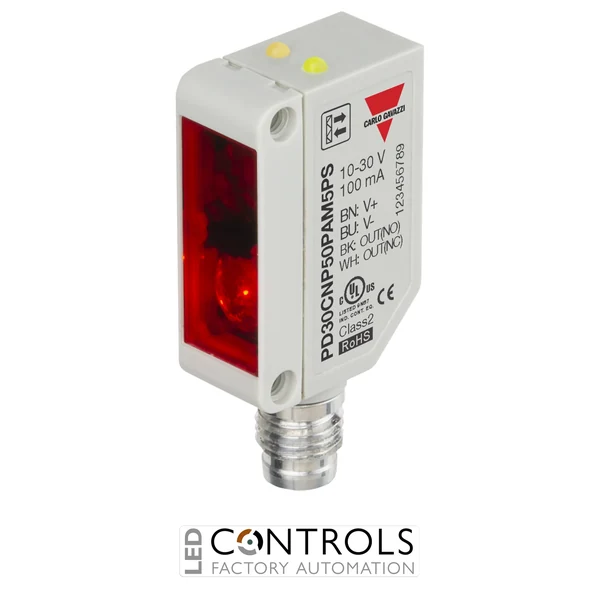

The Carlo Gavazzi PD30CNP50PAM5PS is a compact and precise polarised retro-reflective photoelectric sensor with PointSpot technology designed for reliable long-range object detection in industrial automation and machine-building applications. As part of the Carlo Gavazzi PD30 PointSpot series, it combines a focused visible red light beam, a sensing range of up to 5 m and PNP complementary outputs in a miniature industrial housing.
The PD30CNP50PAM5PS uses polarised visible red light together with a suitable reflector to detect objects interrupting the optical path. The PointSpot optical system produces a clearly defined light spot with reduced stray light, improving alignment and allowing accurate detection of targets in compact machine installations.
Operating from a 10–30 V DC supply, the PD30CNP50PAM5PS provides PNP complementary NO+NC outputs, a fast 500 Hz switching frequency and an M8 4-pin connector. Its compact ABS housing, IP67 protection and integrated electrical protection make it suitable for conveyors, packaging systems, assembly equipment and automated machinery.
Key Advantages
- Polarised retro-reflective sensing provides reliable long-distance object detection.
- 5 m sensing range supports a wide range of industrial detection applications.
- PointSpot visible red light technology provides a precise optical beam for easier alignment.
- PNP complementary NO+NC outputs provide flexible machine-control integration.
- 500 Hz switching frequency supports fast automated processes.
- M8 connector connection enables quick installation and convenient maintenance.
- Compact PD30 housing allows installation in space-restricted machinery.
- IP67 protection provides dependable operation in industrial environments.
Key Features
- Carlo Gavazzi PD30 PointSpot photoelectric sensor.
- Polarised retro-reflective sensing principle.
- 5 m rated sensing distance with suitable reflector.
- Visible red PointSpot light source.
- 10–30 V DC operating voltage.
- PNP transistor output.
- Complementary NO+NC switching function.
- 500 Hz operating frequency.
- ≤1 ms response time.
- Adjustable sensitivity for commissioning.
- LED indication for power and output status.
- Short-circuit, reverse-polarity and transient protection.
- Compact ABS housing with IP67 protection.
Reliable PointSpot Detection for Industrial Automation
The Carlo Gavazzi PD30CNP50PAM5PS uses polarised retro-reflective technology to detect objects passing between the sensor and a reflector. The polarised optical system helps prevent false switching caused by reflective surfaces, making it suitable for demanding industrial detection tasks.
The PointSpot optical design produces a concentrated visible red beam, helping installers accurately align the sensor and detect targets with improved precision. Combined with a compact housing, fast switching response and IP67 protection, the PD30CNP50PAM5PS is ideal for modern automated machinery.
Typical Applications
- Industrial conveyor systems.
- Packaging and production machinery.
- Material handling equipment.
- Product presence and position detection.
- Assembly and manufacturing lines.
- Parts counting applications.
- Automated sorting systems.
- OEM machinery and industrial automation equipment.
