Why Choose the Carlo Gavazzi PD30CNP60NAM5SA Photoelectric Sensor?

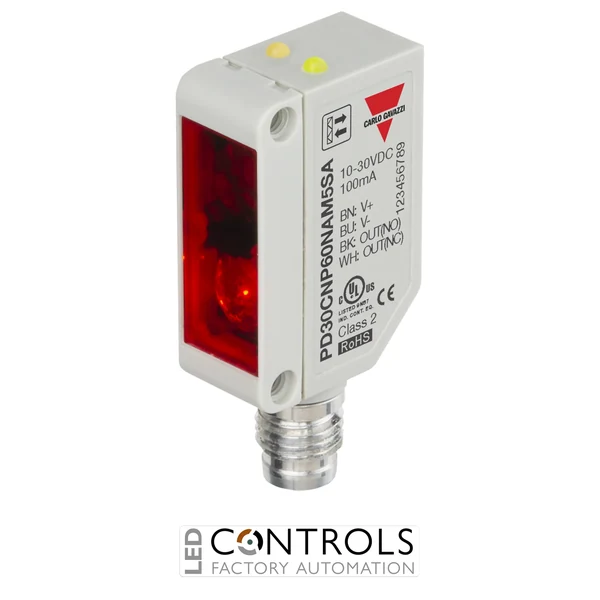

The Carlo Gavazzi PD30CNP60NAM5SA is a compact polarised retro-reflective photoelectric sensor designed for reliable medium- to long-range object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PD30 series, it provides an adjustable sensing range of up to 6 m using polarised, modulated red light.
The PD30CNP60NAM5SA uses a separate reflector to return the emitted beam to the sensor, while its polarised optical system helps discriminate between the intended reflector and unwanted reflections from shiny targets. Its preset NPN transistor output with complementary NO + NC switching and light/dark switching functionality provide flexible integration with compatible PLCs, machine controllers and automation equipment.
With a 10–30 V DC supply, 625 nm visible red light, potentiometer sensitivity adjustment and a fast 1 kHz switching frequency, the PD30CNP60NAM5SA is suitable for demanding automated processes. This version features a compact M8 plug connection, 10 × 30 × 20 mm reinforced plastic housing and IP67 protection.
Key Advantages
- Reliable polarised retro-reflective sensing up to 6 m.
- Polarised optical system helps improve detection of shiny and reflective targets.
- 625 nm visible red light assists sensor-to-reflector alignment.
- NPN complementary NO + NC outputs provide flexible control-system integration.
- Potentiometer sensitivity adjustment enables application-specific configuration.
- Fast 1 kHz switching frequency supports high-speed automation.
- M8 connector simplifies installation, servicing and sensor replacement.
- Compact IP67-rated housing suits space-restricted industrial machinery.
Key Features
- Carlo Gavazzi PD30 photoelectric sensor series.
- Polarised retro-reflective sensing principle.
- 6 m maximum sensing range.
- 625 nm polarised modulated red light.
- NPN transistor output.
- Complementary normally open and normally closed outputs.
- Light/dark switching.
- Potentiometer sensitivity adjustment.
- 1 kHz maximum switching frequency.
- 500 µs response time.
- M8 plug connection.
- Compact reinforced plastic rectangular housing.
- IP67 ingress protection.
Reliable Polarised Retro-Reflective Detection
Polarised retro-reflective photoelectric sensors transmit light towards a separate reflector and monitor the returned beam. An object is detected when it interrupts this optical path. Polarisation helps the sensor distinguish the reflector from direct reflections produced by glossy or reflective objects, improving detection reliability in challenging applications.
The Carlo Gavazzi PD30 design combines compact dimensions with adjustable sensitivity and fast switching performance. With its 6 m sensing capability, visible red alignment beam and M8 connection, the PD30CNP60NAM5SA is well suited to conveyors, packaging machinery, material handling equipment and automated production systems.
Typical Applications
- Industrial conveyor object detection.
- Packaging and production machinery.
- Detection of shiny and reflective objects.
- Material handling and logistics systems.
- Component presence and position monitoring.
- Automated counting and inspection equipment.
- PLC-controlled machinery and factory automation.
