Why Choose the Carlo Gavazzi PD30CNR60NASA Retro-Reflective Photoelectric Sensor?

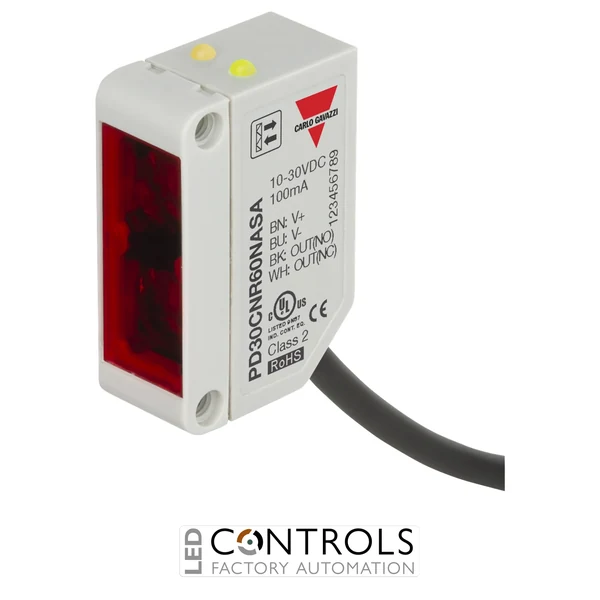

The Carlo Gavazzi PD30CNR60NASA is a compact and reliable retro-reflective photoelectric sensor designed for long-range object detection in industrial automation and machine-building applications. As part of the Carlo Gavazzi PD30 photoelectric sensor series, it combines a 6 m sensing distance with NPN complementary outputs, adjustable sensitivity and a slim rectangular housing.
The PD30CNR60NASA uses a retro-reflective sensing principle, directing modulated infrared light towards a separate reflector and monitoring the returned beam. An object is detected when it interrupts this optical path, providing dependable non-contact sensing while requiring electrical wiring on only one side of the detection area.
Operating from a 10–30 V DC supply, the PD30CNR60NASA provides NPN NO+NC outputs with light and dark switching functions. A 2 m pre-wired cable, fast 1000 Hz switching frequency, compact ABS housing and IP67 protection make it well suited to conveyors, packaging equipment and automated production machinery.
Key Advantages
- Long-range retro-reflective sensing up to 6 m.
- NPN complementary NO+NC outputs provide flexible industrial control integration.
- Fast 1000 Hz switching frequency supports high-speed automation.
- Potentiometer sensitivity adjustment enables straightforward application setup.
- 10–30 V DC operating supply suits standard industrial control systems.
- 2 m integral cable simplifies machine wiring.
- Robust IP67 protection for demanding industrial environments.
Key Features
- Carlo Gavazzi PD30 photoelectric sensor series.
- Retro-reflective sensing principle.
- 6 m rated operating distance.
- Modulated infrared light.
- 1000 Hz operating frequency.
- 10–30 V DC rated operating voltage.
- NPN open-collector outputs.
- Normally open and normally closed (NO+NC) functions.
- Light switching and dark switching outputs.
- Up to 100 mA output current.
- Potentiometer sensitivity adjustment.
- 2 m pre-wired cable.
- Yellow target-detection and green status LED indication.
- IP67 degree of protection.
Reliable Long-Range Detection for Industrial Automation
Retro-reflective photoelectric sensors contain the emitter and receiver in the same housing and operate with a reflector positioned opposite the sensor. The emitted beam travels to the reflector and returns to the receiver, allowing objects to be detected when they interrupt the optical path. This configuration provides long-distance sensing while keeping electrical connections on one side of the machine.
The PD30CNR60NASA combines a 6 m operating distance with rapid 1000 Hz switching, adjustable sensitivity and complementary NPN outputs. Its compact IP67 housing makes it particularly suitable for machine builders requiring reliable sensing performance where available installation space is limited.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Product presence and position detection.
- High-speed counting and sorting equipment.
- Warehouse and logistics automation.
- Assembly and manufacturing machinery.
- OEM machine building and factory automation.
