Why Choose the Carlo Gavazzi PD30CNT15PM5MU Through-Beam Photoelectric Emitter?

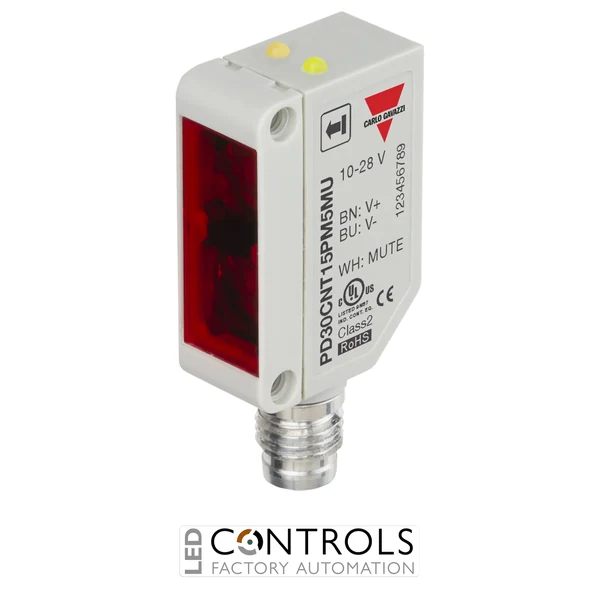

The Carlo Gavazzi PD30CNT15PM5MU is a compact through-beam photoelectric emitter designed for reliable long-distance object detection when paired with a compatible PD30 through-beam receiver. Part of the Carlo Gavazzi PD30 photoelectric sensor series, it offers a rated sensing distance of up to 15 m in a miniature rectangular housing suitable for space-constrained industrial machinery.
The PD30CNT15PM5MU uses 880 nm modulated infrared light to establish the optical beam between the emitter and receiver. Its through-beam configuration provides dependable detection by allowing the receiver to identify when an object interrupts the transmitted beam. The unit also incorporates a PNP mute input and supports teach-in adjustment as part of the through-beam sensing system.
Operating from a standard 10–30 V DC supply, the emitter features an M8 connector, compact plastic construction and IP67 protection. With dimensions of approximately 10.8 × 30 × 20 mm and an operating temperature range of -25 to +55 °C, it is well suited to packaging equipment, conveyors, material handling systems and other industrial automation applications.
Key Advantages
- Long-distance through-beam sensing up to 15 m when paired with a compatible receiver.
- 880 nm modulated infrared light provides a robust optical sensing beam.
- PNP mute input supports control and diagnostic functions within the sensing system.
- 10–30 V DC operating voltage suits standard industrial control systems.
- Compact housing makes installation practical where mounting space is limited.
- M8 plug connection simplifies wiring, replacement and maintenance.
- Teach-in capability supports sensing system adjustment.
- IP67 protection supports use in demanding industrial environments.
Key Features
- Carlo Gavazzi PD30 photoelectric sensor series.
- Through-beam photoelectric emitter/transmitter.
- Rated sensing distance of 15 m.
- 880 nm infrared light.
- Modulated optical beam.
- PNP mute input.
- 10–30 V DC rated operational voltage.
- M8 connector electrical connection.
- Compact rectangular plastic housing.
- Approximate dimensions of 10.8 × 30 × 20 mm.
- Operating temperature range of -25 to +55 °C.
- IP67 degree of protection.
- Designed to operate with a separate compatible through-beam receiver.
How Through-Beam Photoelectric Sensing Works
A through-beam photoelectric system uses two separate devices: an emitter and a receiver mounted opposite one another. The emitter continuously transmits an optical beam towards the receiver, and an object is detected when it passes through the sensing path and interrupts the beam. This configuration provides long sensing distances and reliable non-contact detection because the receiver monitors a dedicated transmitted light source rather than light reflected from the target.
The PD30CNT15PM5MU serves as the emitter within such a system and is designed for sensing distances up to 15 m. Its compact housing, modulated infrared light, PNP mute input and M8 connection make it suitable for applications requiring a small but long-range through-beam sensing solution. A compatible Carlo Gavazzi receiver is required to complete the sensing pair and provide the system's switching output.
Typical Applications
- Industrial conveyor and material handling systems.
- Packaging and production machinery.
- Long-distance object presence detection.
- Product counting on automated production lines.
- Automated assembly and handling equipment.
- Machine entry and exit detection points.
- Component, carton and package detection.
