Why Choose the Carlo Gavazzi PD30CTB20NASA Background-Suppression Photoelectric Sensor?

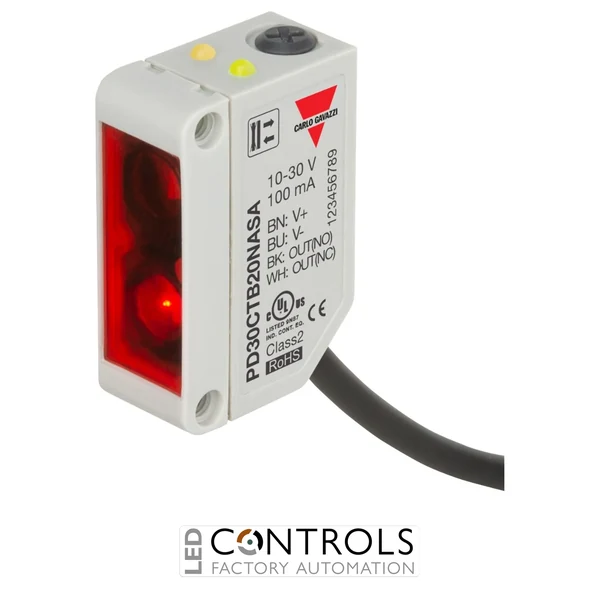

The Carlo Gavazzi PD30CTB20NASA is a compact diffuse-reflective photoelectric sensor with adjustable background suppression designed for precise object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PD30 photoelectric sensor series, it combines a 0–200 mm sensing range with red-light detection, NPN complementary outputs and a top-mounted adjustment trimmer.
The PD30CTB20NASA uses 625 nm non-polarised red light and background-suppression technology to detect objects within the configured sensing zone while ignoring more distant surfaces. This makes it especially useful where targets must be detected reliably in front of machine panels, conveyor structures or other potentially reflective backgrounds.
Operating from a 10–30 V DC supply, the PD30CTB20NASA provides NPN complementary NO+NC outputs with light and dark switching. Its 2 m cable, compact 10 × 30 × 20 mm plastic housing, 500 Hz switching frequency and IP67 protection make it suitable for demanding industrial automation applications.
Key Advantages
- Precise background-suppression sensing up to 200 mm.
- 625 nm red-light sensing provides a clearly visible alignment point.
- NPN complementary NO+NC outputs support flexible control logic.
- Top-mounted manual trimmer adjustment simplifies sensing-range setup.
- 500 Hz switching frequency supports rapid industrial detection.
- 2 m pre-wired cable provides straightforward machine integration.
- Compact 10 × 30 × 20 mm housing fits restricted installation spaces.
- Robust IP67 protection for industrial environments.
Key Features
- Carlo Gavazzi PD30 photoelectric sensor series.
- Diffuse-reflective sensing with adjustable background suppression.
- 0–200 mm rated sensing range.
- 625 nm non-polarised red light.
- 10–30 V DC rated power supply.
- NPN transistor outputs.
- Complementary NO+NC output function.
- Selectable light/dark switching.
- 500 Hz switching frequency.
- 100 mA maximum output current.
- Top-mounted manual trimmer adjustment.
- 2 m cable connection.
- Compact rectangular plastic housing.
- IP67 degree of protection.
Reliable Background Suppression for Industrial Automation
Background-suppression photoelectric sensing enables a sensor to detect objects within a defined range while rejecting reflections from surfaces positioned farther away. This is particularly valuable in machinery where conventional diffuse-reflective sensors could otherwise respond incorrectly to conveyor frames, machine panels or other nearby backgrounds.
The PD30CTB20NASA combines adjustable background suppression with red-light sensing, complementary NPN outputs and a compact housing. Its top-mounted trimmer allows the switching distance to be configured conveniently after installation, making it a practical choice for machine builders and automation engineers requiring dependable close-range object detection.
Typical Applications
- Product presence detection on conveyors.
- Packaging and production machinery.
- Component positioning and assembly systems.
- Detection where background surfaces must be ignored.
- Counting and sorting equipment.
- Material handling systems.
- OEM machinery and factory automation.
