Why Choose the Carlo Gavazzi PD30CTD02PAWE Photoelectric Sensor?

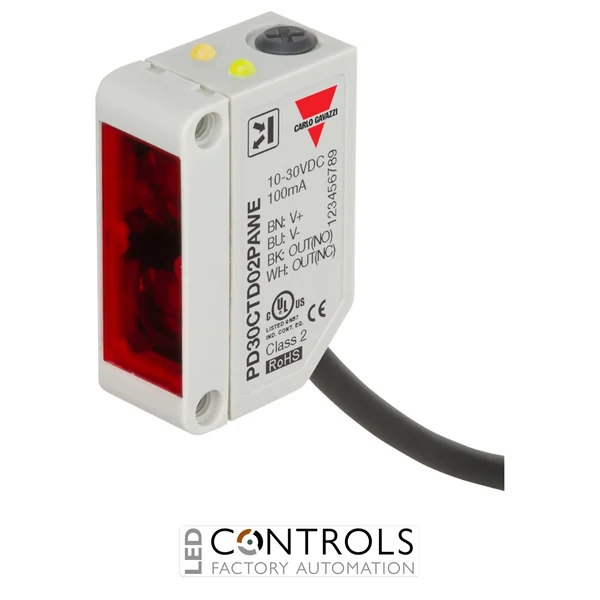

The Carlo Gavazzi PD30CTD02PAWE is a compact and reliable diffuse-reflective photoelectric sensor designed for accurate object detection in industrial automation, machinery and control applications. As part of the Carlo Gavazzi PD30 series, it combines a wide-angle infrared sensing system, adjustable sensitivity and complementary PNP switching outputs in a miniature rectangular housing.
The PD30CTD02PAWE uses modulated infrared light at 850 nm to detect objects directly from reflected light, eliminating the need for a separate reflector. Its wide-angle optical design makes it suitable for applications where target positioning may vary, while the top-mounted trimmer allows simple sensitivity adjustment during installation and commissioning.
Operating from a 10–30 V DC supply, the PD30CTD02PAWE provides PNP complementary NO+NC outputs, light/dark switching capability and a 2 m integral cable. Its compact reinforced plastic housing and IP67 protection make it suitable for demanding industrial environments.
Key Advantages
- Compact diffuse-reflective photoelectric sensor for industrial automation.
- 200 mm sensing range with extremely wide-angle infrared detection.
- PNP complementary NO+NC outputs provide flexible PLC and control-system integration.
- Top trimmer sensitivity adjustment simplifies setup and commissioning.
- Infrared 850 nm light source provides reliable object detection.
- 2 m cable connection enables straightforward installation.
- IP67 protection supports dependable operation in industrial environments.
Key Features
- Carlo Gavazzi PD30 series photoelectric sensor.
- Diffuse-reflective sensing principle.
- 0–200 mm rated operating distance.
- Wide-angle infrared sensing.
- 850 nm modulated infrared light source.
- 10–30 V DC operating voltage.
- PNP transistor output.
- Complementary NO+NC switching function.
- Selectable light-on / dark-on switching.
- Top-mounted sensitivity trimmer.
- LED indication for output, stability and power status.
- Short-circuit, reverse-polarity and transient protection.
- Compact reinforced plastic housing.
Reliable Diffuse Detection for Industrial Automation
Diffuse-reflective photoelectric sensors such as the Carlo Gavazzi PD30CTD02PAWE detect objects by transmitting infrared light towards the target and measuring the reflected signal. This provides a simple single-device sensing solution without requiring a separate reflector or receiver.
The PD30 series combines compact dimensions with reliable industrial performance. The PD30CTD02PAWE is particularly suited to applications requiring a wide detection angle, adjustable sensitivity and flexible PNP switching, making it a practical choice for machine builders and automation engineers.
Typical Applications
- Industrial conveyor systems.
- Packaging and production machinery.
- Object presence detection.
- Assembly and manufacturing equipment.
- PCB and component detection applications.
- Material handling systems.
- Automated sorting and inspection equipment.
- OEM machinery and industrial automation systems.
