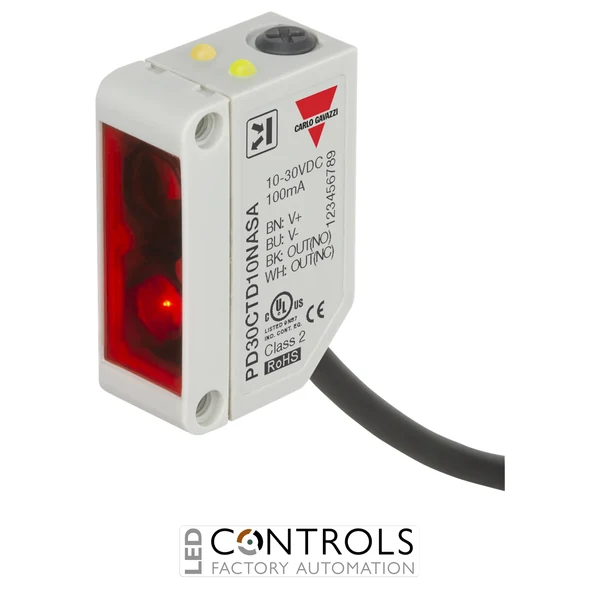

Why Choose the Carlo Gavazzi PD30CTD10NASA Photoelectric Sensor?
The Carlo Gavazzi PD30CTD10NASA is a compact and reliable diffuse-reflective photoelectric sensor designed for accurate object detection in industrial automation, machinery and control applications. As part of the Carlo Gavazzi PD30 series, it combines a 1000 mm sensing range, adjustable sensitivity and complementary NPN switching outputs in a miniature rectangular housing.
The PD30CTD10NASA uses modulated polarity-free red light at 625 nm to detect objects directly from reflected light, eliminating the need for a separate reflector. Its top-mounted trimmer allows straightforward sensitivity adjustment during installation, while light/dark switching provides flexible operation for different automation requirements.
Operating from a 10–30 V DC supply, the PD30CTD10NASA provides NPN complementary NO+NC outputs, a 1000 Hz switching frequency and a 2 m integral cable. Its compact plastic housing and IP67 protection make it suitable for demanding industrial environments.
Key Advantages
- Compact diffuse-reflective photoelectric sensor for industrial automation.
- 1000 mm sensing range supports flexible object detection applications.
- NPN complementary NO+NC outputs provide versatile PLC and control-system integration.
- Top trimmer sensitivity adjustment simplifies commissioning and setup.
- 625 nm polarity-free red light provides visible alignment and reliable sensing.
- 1000 Hz switching frequency supports fast industrial processes.
- 2 m cable connection enables straightforward installation.
- IP67 protection supports dependable operation in industrial environments.
Key Features
- Carlo Gavazzi PD30 series photoelectric sensor.
- Diffuse-reflective sensing principle.
- 0–1000 mm rated operating distance.
- Top-mounted sensitivity trimmer.
- 625 nm modulated red light source.
- 10–30 V DC operating voltage.
- NPN transistor output.
- Complementary NO+NC switching function.
- Light/dark switching mode.
- 1000 Hz operating frequency.
- LED indication for output and power status.
- Short-circuit, reverse-polarity and transient protection.
- Compact plastic rectangular housing.
Reliable Diffuse Detection for Industrial Automation
Diffuse-reflective photoelectric sensors such as the Carlo Gavazzi PD30CTD10NASA detect objects by transmitting red light towards the target and measuring the reflected signal. This provides a simple single-device sensing solution without requiring a separate reflector or receiver.
The PD30 series combines compact dimensions with reliable industrial performance. The PD30CTD10NASA is designed for applications requiring accurate sensing, adjustable sensitivity and flexible NPN switching, making it suitable for machine builders and automation engineers.
Typical Applications
- Industrial conveyor systems.
- Packaging and production machinery.
- Object presence detection.
- Assembly and manufacturing equipment.
- Material handling systems.
- Automated sorting and inspection equipment.
- Machine building applications.
- OEM industrial automation systems.
