Why Choose the Carlo Gavazzi PD70CNT12NO Through-Beam Photoelectric Receiver?

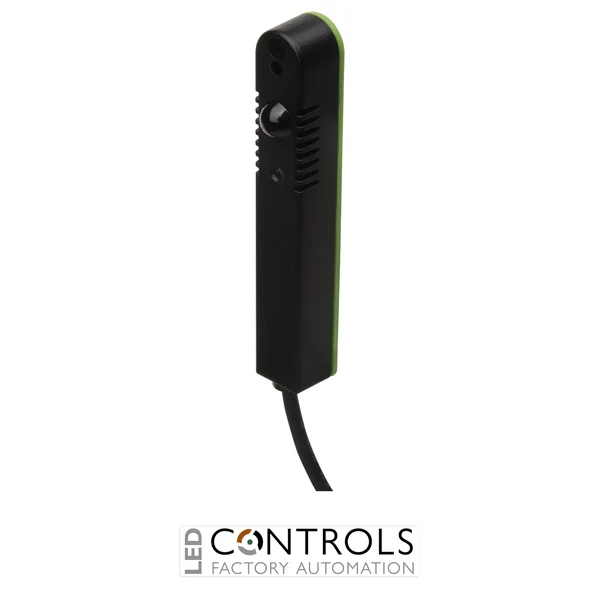

The Carlo Gavazzi PD70CNT12NO is a compact through-beam photoelectric receiver designed for reliable object and obstruction detection in industrial automation, automatic door and gate applications. Part of the Carlo Gavazzi PD70 photoelectric sensor series, it operates with a compatible PD70 emitter to provide a sensing range of up to 12 m.
This receiver features an NPN normally open (NO) transistor output with light switching operation, providing straightforward integration with PLCs, controllers and compatible industrial safety systems. The through-beam operating principle provides dependable long-distance detection by monitoring the infrared beam transmitted from the separately installed emitter.
Operating from a 10–30 V DC supply, the PD70CNT12NO features a fixed 5 m cable, rectangular plastic housing and IP67 protection. It is classified as an ESPE Type 2 device and is designed to support applications covered by EN 12445, EN 12453, EN 12978 and UL 325 requirements.
Key Advantages
- Compact through-beam photoelectric receiver for industrial detection applications.
- Long sensing distance of up to 12 m with a compatible PD70 emitter.
- NPN normally open output for integration with industrial control systems.
- Light switching operation provides a defined output response to the received beam.
- 10–30 V DC supply suits standard industrial automation systems.
- 5 m fixed cable enables straightforward hard-wired installation.
- IP67 protection supports use in demanding industrial environments.
- ESPE Type 2 design for compatible door, gate and presence-detection systems.
Key Features
- Carlo Gavazzi PD70 photoelectric sensor series.
- Through-beam photoelectric receiver.
- 12 m rated sensing range with compatible emitter.
- NPN transistor switching output.
- Normally open (NO) output function.
- Light switching sensing mode.
- Designed for operation with an infrared through-beam emitter.
- 10–30 V DC rated operating voltage.
- 5 m cable connection.
- Rectangular plastic sensor housing.
- IP67 degree of protection.
- ESPE Type 2 classification.
- Designed in accordance with EN 12445, EN 12453 and EN 12978, with UL 325 approval.
Reliable Through-Beam Detection for Industrial Automation
Through-beam photoelectric systems use separate emitter and receiver units positioned opposite each other. The emitter transmits an optical beam towards the receiver, and interruption of this beam by an object or person is detected by the receiver. This arrangement provides reliable long-range sensing and makes through-beam technology particularly suitable for monitoring openings, access points and automated equipment.
The Carlo Gavazzi PD70CNT12NO forms the receiving side of a PD70 through-beam sensing system. Its 12 m range, NPN normally open output, compact construction and IP67 protection make it well suited to automatic doors, gates and industrial machinery where dependable non-contact detection is required.
Typical Applications
- Industrial automatic doors and gates.
- Garage and access-control door systems.
- Doorway presence and obstruction detection.
- Industrial machine openings and access points.
- Conveyor and material handling systems.
- Automated entrance and closing systems.
- OEM machinery requiring long-range through-beam detection.
