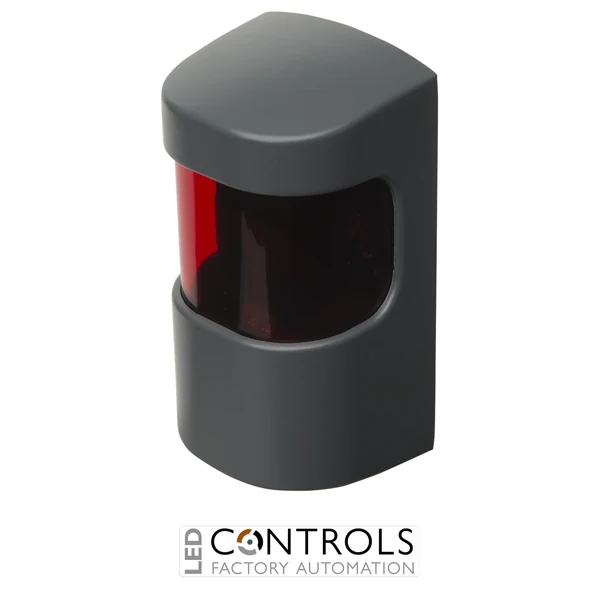

Why Choose the Carlo Gavazzi PD86HAP12QPTD-01C Photoelectric Sensor?
The Carlo Gavazzi PD86HAP12QPTD-01C is a robust polarised retro-reflective photoelectric sensor designed for reliable object detection in demanding industrial door, gate and automation applications. As part of the Carlo Gavazzi PD86 series, it combines a long sensing range, visible polarised red light and a durable metal housing for dependable operation in challenging environments.
The sensor provides a sensing range of up to 12 m using a 620 nm visible red light source. Its relay output and programmable light/dark switching provide flexible control integration, while adjustable sensitivity allows the sensor to be configured for the required detection conditions.
With a 12–24 V AC/DC supply, integrated mute functionality and an IP66-rated ZAMAK 5 metal housing, the PD86HAP12QPTD-01C is particularly suited to industrial doors and gates as well as general automation applications. The rectangular 44 × 86 × 39 mm enclosure provides a rugged installation format with screw-terminal electrical connection.
Key Advantages
- Long-range polarised retro-reflective photoelectric sensing up to 12 m.
- Durable ZAMAK 5 metal housing for demanding industrial environments.
- 12–24 V AC/DC supply provides flexible installation options.
- Integrated mute input for industrial door and gate applications.
- Adjustable sensitivity enables optimisation for the installation conditions.
- IP66 protection supports use in dusty and exposed industrial environments.
Key Features
- Carlo Gavazzi PD86 photoelectric sensor series.
- Polarised retro-reflective sensing principle.
- 12 m maximum sensing range.
- 620 nm visible red light.
- Relay contact output.
- Programmable light-on / dark-on switching.
- 12–24 V AC/DC power supply.
- Integrated mute functionality for door and gate systems.
- Adjustable sensitivity for application-specific set-up.
- IP66-rated ZAMAK 5 metal housing.
- LED indication for sensor status.
- Screw-terminal connection for secure industrial wiring.
Reliable Long-Range Detection for Industrial Doors and Automation
Polarised retro-reflective photoelectric sensors transmit a modulated light beam towards a reflector and monitor the returning light. An object passing between the sensor and reflector interrupts the optical path and changes the sensor output, while polarisation helps distinguish the intended reflector from unwanted reflections produced by shiny objects and surfaces.
The Carlo Gavazzi PD86 series is engineered for demanding industrial sensing applications, including door and gate installations where dust, weather and long sensing distances can affect conventional detection systems. The PD86HAP12QPTD-01C combines a robust metal enclosure, mute functionality, adjustable sensitivity and relay switching with high immunity to ambient light and electromagnetic interference.
Typical Applications
- Industrial automatic doors and gates.
- Door opening and closing safety systems.
- Warehouse and loading-bay entrances.
- Long-range object and vehicle detection.
- Conveyor and material handling systems.
- Industrial machinery and automation systems.
