Why Choose the Carlo Gavazzi PH18CND10PASA Photoelectric Sensor?

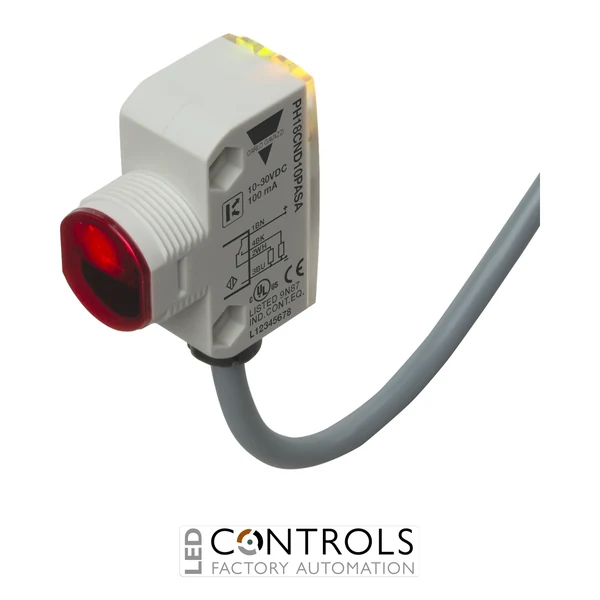

The Carlo Gavazzi PH18CND10PASA is a compact and robust diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial automation, packaging and material handling applications. As part of the Carlo Gavazzi PH18 photoelectric sensor series, it combines the mounting compatibility of an industrial M18-style sensor with a compact square housing for installations where space and dependable sensing performance are important.
The PH18CND10PASA uses 625 nm modulated red light and a diffuse-reflective sensing principle, allowing objects to be detected directly from the light reflected by their surfaces without requiring a separate reflector or receiver. Adjustable sensitivity and light/dark switching provide flexibility for different targets, while LED indication assists with sensor alignment, status monitoring and commissioning.
With a rated operating distance of 0–1000 mm, a 10–30 V DC supply and PNP complementary NO+NC outputs, the PH18CND10PASA integrates readily with PLCs and industrial controllers. Its 2 m cable, compact ABS housing and IP67/IP69K protection make it particularly suitable for demanding industrial environments, including applications requiring frequent cleaning.
Key Advantages
- Up to 1000 mm diffuse-reflective sensing range for versatile object detection.
- Diffuse-reflective operation requires no separate reflector or receiving sensor.
- PNP complementary NO+NC outputs provide flexible control-system integration.
- 625 nm modulated red light provides dependable optical detection.
- Adjustable sensitivity enables optimisation for different objects and operating distances.
- 500 Hz maximum switching frequency supports fast-moving automation processes.
- IP67 and IP69K protection supports operation in demanding and washdown environments.
Key Features
- Carlo Gavazzi PH18 photoelectric sensor series.
- Diffuse-reflective sensing principle.
- 0–1000 mm rated operating distance.
- 625 nm modulated red light source.
- 10–30 V DC rated power supply.
- PNP transistor output.
- Complementary normally open and normally closed switching.
- 100 mA maximum operating current.
- 500 Hz maximum switching frequency.
- Light/dark switching operation.
- Potentiometer sensitivity adjustment.
- LED indication for output, stability and power status.
- 2 m integral cable connection.
- Compact square ABS housing.
- IP67 and IP69K degrees of protection.
- ECOLAB approved for demanding hygienic environments.
Reliable Object Detection for Industrial Automation
Diffuse-reflective photoelectric sensors such as the Carlo Gavazzi PH18CND10PASA transmit light towards the target and monitor the light reflected directly from its surface. This enables non-contact detection without installing a reflector or separate receiver opposite the sensing point, simplifying installation on conveyors, production machinery and material handling equipment.
The PH18 series combines compact industrial-standard mounting with flexible optical adjustment and robust environmental protection. The PH18CND10PASA's complementary PNP outputs, adjustable sensitivity and 500 Hz switching capability enable straightforward integration with PLC-controlled machinery, while its IP69K and ECOLAB-rated construction makes it particularly useful where equipment is exposed to intensive cleaning processes.
Typical Applications
- Conveyor product and package detection.
- Packaging and labelling machinery.
- Food and beverage processing equipment.
- Material handling and logistics systems.
- Presence and absence detection.
- Product counting and positioning systems.
- Washdown and hygienic production environments.
- PLC-controlled manufacturing and automation systems.
