Why Choose the Carlo Gavazzi PH18CNR65NASA Retro-Reflective Photoelectric Sensor?

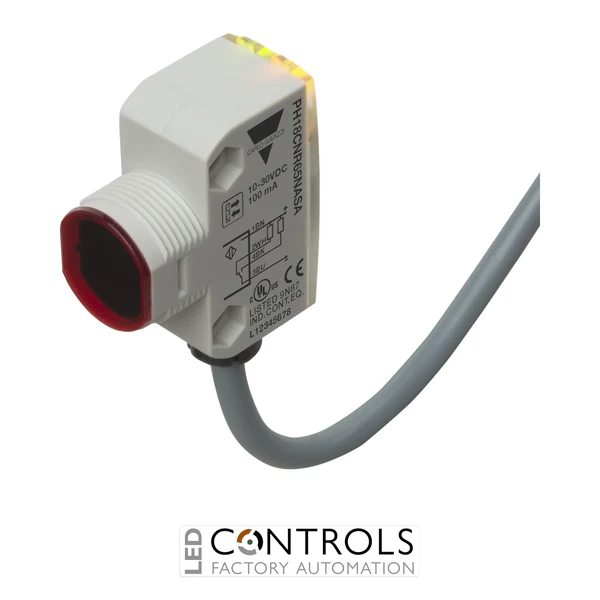

The Carlo Gavazzi PH18CNR65NASA is a compact retro-reflective photoelectric sensor designed for reliable object detection in industrial automation and machine-control applications. As part of the Carlo Gavazzi PH18 series, it combines rectangular housing construction with M18 optics, providing high sensing performance in a compact format.
The PH18CNR65NASA operates by transmitting 850 nm modulated infrared light towards a suitable reflector and monitoring the returned beam. It provides a sensing range of up to 6.5 m, making it suitable for conveyors, packaging machinery, material handling and other applications requiring non-contact detection across a defined sensing path.
Operating from a 10–30 V DC supply, the PH18CNR65NASA provides complementary NPN NO+NC outputs with light and dark switching functionality. The sensor is supplied with an integral 2 m cable and features IP67 / IP69K protection together with ECOLAB suitability, supporting reliable use in demanding industrial and washdown environments.
Key Advantages
- Compact retro-reflective photoelectric sensor for industrial object detection.
- 6.5 m sensing range supports detection across conveyors and machinery.
- NPN complementary NO+NC outputs provide flexible control integration.
- 10–30 V DC supply suits standard industrial automation systems.
- 850 nm modulated infrared light provides dependable optical sensing.
- Integral 2 m cable simplifies connection to control equipment.
- IP67 and IP69K protection supports demanding industrial environments.
- ECOLAB suitability makes the sensor appropriate for applications involving intensive cleaning processes.
Key Features
- Carlo Gavazzi PH18 photoelectric sensor series.
- Retro-reflective sensing principle.
- 6.5 m maximum sensing range.
- NPN complementary NO+NC outputs.
- Light / dark switching.
- 10–30 V DC rated operating voltage.
- 850 nm infrared light source.
- 500 Hz maximum switching frequency.
- 100 mA maximum operating current.
- 2 m fixed cable connection.
- Compact rectangular housing with M18 optics.
- IP67 / IP69K degree of protection.
- ECOLAB-rated construction.
Reliable Retro-Reflective Detection for Industrial Automation
Retro-reflective photoelectric sensing places the light transmitter and receiver in the same sensor housing and uses a reflector on the opposite side of the detection area. When an object interrupts the returning optical beam, the sensor changes its electronic output state, providing dependable non-contact detection while requiring electrical wiring on only one side of the sensing path.
The Carlo Gavazzi PH18CNR65NASA combines this practical sensing principle with complementary NPN outputs, adjustable light/dark operation and a compact industrial housing. Its high ingress protection and ECOLAB suitability make it particularly useful for automated production environments where equipment may be exposed to moisture and intensive cleaning.
Typical Applications
- Conveyor object and package detection.
- Packaging and processing machinery.
- Food and beverage production equipment.
- Material-handling and logistics systems.
- Component presence and position monitoring.
- Washdown machinery and production areas.
- PLC-controlled industrial automation systems.
