Why Choose the Carlo Gavazzi PH18CNR65PAT1SA Retro-Reflective Photoelectric Sensor?

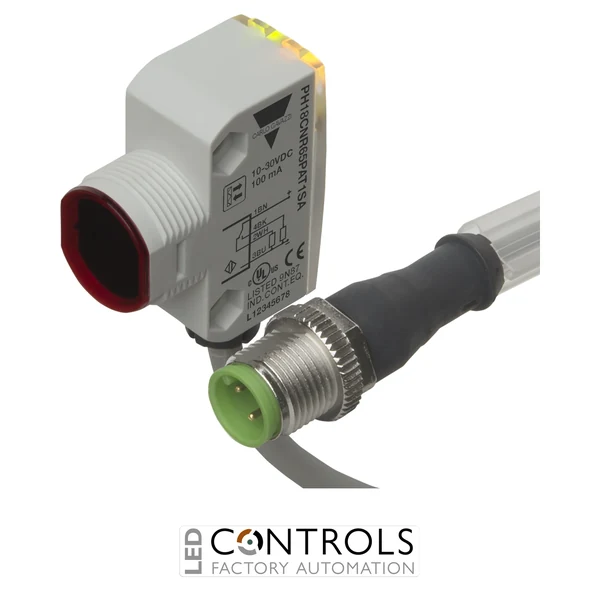

The Carlo Gavazzi PH18CNR65PAT1SA is a compact retro-reflective photoelectric sensor designed for reliable non-contact object detection in industrial automation and machine control applications. Part of the Carlo Gavazzi PH18 series, it combines a space-saving square M18-style plastic housing with a sensing distance of up to 6.5 m.
The PH18CNR65PAT1SA uses 850 nm modulated infrared light and works with a reflector positioned opposite the sensor. Its sensitivity is adjustable, allowing the sensing system to be optimised for different installation distances and operating conditions while retaining the convenient single-sided wiring associated with retro-reflective sensing.
Operating from a 10–30 V DC supply, this model provides a PNP complementary NO+NC transistor output with light and dark switching. The M12 pigtail connection, fast 500 Hz operating frequency and IP67/IP69K protection make the PH18CNR65PAT1SA particularly suitable for packaging, conveying, material handling, food processing and other demanding industrial applications.
Key Advantages
- Long-range retro-reflective detection up to 6.5 m.
- Single-sided electrical installation with a passive reflector mounted opposite the sensor.
- PNP complementary NO+NC output provides flexible light and dark switching.
- Adjustable sensitivity allows straightforward optimisation during commissioning.
- 500 Hz operating frequency supports fast-moving industrial applications.
- M12 pigtail connection combines flexible mounting with convenient plug-in wiring.
- IP67 and IP69K protection supports demanding industrial and washdown environments.
- ECOLAB-compatible construction makes the sensor suitable for applications with stringent cleaning requirements.
Key Features
- Carlo Gavazzi PH18 photoelectric sensor series.
- M18 square-format retro-reflective sensor.
- Rated sensing distance up to 6.5 m.
- Adjustable sensing range from approximately 5–650 cm.
- 850 nm modulated infrared light.
- 10–30 V DC operating voltage.
- PNP transistor output.
- Complementary NO+NC output function.
- Light and dark switching.
- Maximum operating current of 100 mA.
- 500 Hz maximum switching frequency.
- 4-pin M12 pigtail connection.
- Compact ABS/PMMA industrial housing.
- IP67 / IP69K degree of protection.
- CE, cULus and ECOLAB approvals / marks.
Reliable Retro-Reflective Detection for Industrial Automation
Retro-reflective photoelectric sensing incorporates the light emitter and receiver within the same sensor housing while a reflector is installed on the opposite side of the detection area. The emitted beam travels to the reflector and returns to the sensor, with objects detected when they interrupt this optical path. This arrangement provides long sensing distances while requiring powered equipment on only one side of the application.
The Carlo Gavazzi PH18CNR65PAT1SA combines a 6.5 m sensing range with adjustable sensitivity, complementary PNP outputs and fast switching performance. Its compact construction, M12 pigtail connection and IP69K protection make it a practical solution for machinery where reliable sensing, convenient maintenance and resistance to demanding environmental conditions are important.
Typical Applications
- Conveyor object detection and counting.
- Packaging and processing machinery.
- Material handling and logistics systems.
- Production line presence monitoring.
- Assembly and automated manufacturing equipment.
- Food and beverage production machinery.
- Washdown and demanding industrial environments.
- OEM machinery and factory automation systems.
