Why Choose the Carlo Gavazzi PH18CNT20PAM1SA Photoelectric Sensor?

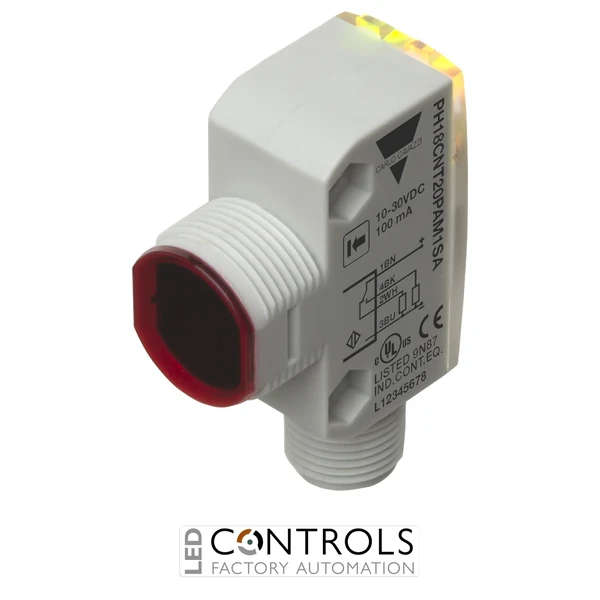

The Carlo Gavazzi PH18CNT20PAM1SA is a compact through-beam photoelectric receiver designed for accurate long-range object detection in industrial machinery and automation systems. Part of the Carlo Gavazzi PH18 series, it combines a miniature square housing with a powerful optical system for applications where both high detection accuracy and limited installation space are important.
The PH18CNT20PAM1SA operates as the receiver in a separate transmitter-and-receiver photoelectric system and provides a rated operating distance of 20 m. It detects 850 nm modulated infrared light and provides PNP complementary NO+NC outputs, allowing normally open and normally closed switching functions for flexible integration with PLCs and machine controllers.
With a 10–30 V DC supply, sensitivity adjustment and a convenient 4-pin M12 connector, the PH18CNT20PAM1SA is engineered for straightforward machine installation and servicing. Its ABS housing provides IP67 / IP69K protection, while reverse-polarity, short-circuit and transient protection help provide dependable operation in demanding industrial environments.
Key Advantages
- Long-range through-beam detection up to 20 m.
- PNP complementary NO+NC outputs provide flexible control-system integration.
- 850 nm modulated infrared sensing for dependable industrial object detection.
- Wide 10–30 V DC operating range suits standard automation control systems.
- Fast 500 Hz operating frequency supports detection of moving products.
- 4-pin M12 plug connection simplifies installation, replacement and maintenance.
- IP67 / IP69K protection supports demanding industrial and washdown environments.
Key Features
- Carlo Gavazzi PH18 through-beam sensor series.
- Through-beam photoelectric receiver.
- 20 m rated operating distance.
- 850 nm modulated infrared light.
- PNP complementary NO + NC output.
- Light and dark switching capability.
- 10–30 V DC operating voltage.
- Output load capability up to 100 mA.
- 500 Hz operating frequency.
- Sensitivity adjustment by potentiometer.
- LED indication for output, stability and power-on status.
- 4-pin M12 connector.
- Reverse-polarity, short-circuit and transient protection.
- IP67 / IP69K environmental protection.
- CE, cULus and ECOLAB marks.
Reliable Long-Range Through-Beam Detection for Industrial Automation
Through-beam photoelectric sensing uses separate transmitter and receiver units installed opposite one another. The transmitter directs a modulated infrared beam towards the receiver, and when an object interrupts that beam the receiver changes its output state. This arrangement offers excellent sensing reliability and enables significantly longer detection distances than many single-housing photoelectric sensing methods.
The Carlo Gavazzi PH18 series combines this reliable sensing principle with compact industrial-standard construction. The PH18CNT20PAM1SA adds complementary PNP outputs, sensitivity adjustment, fast switching and an M12 connector, making it a versatile receiver for conveyors, packaging systems, production machinery and automated material handling equipment.
Typical Applications
- Long-range conveyor object detection.
- Packaging and bottling machinery.
- Product counting on automated production lines.
- Part presence and position monitoring.
- Automated material handling systems.
- Food and beverage processing equipment.
- OEM machinery and industrial automation systems.
