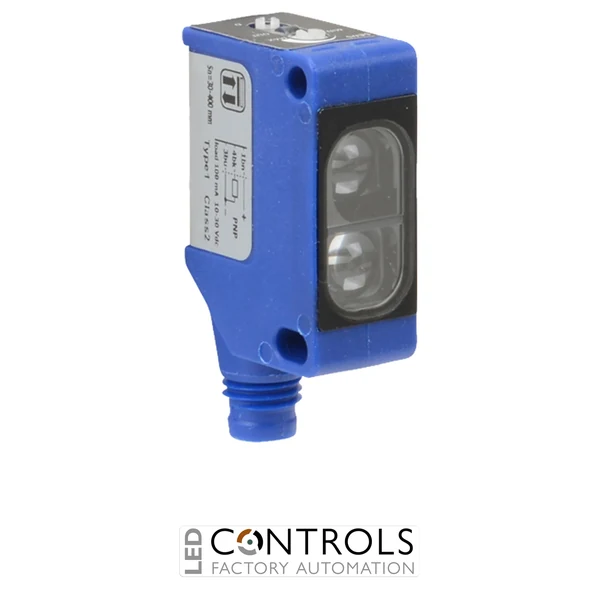

Why Choose the IMO QDRR/0N-0F Through-Beam Photo-Electric Receiver?
The IMO QDRR/0N-0F is a compact through-beam photo-electric receiver designed for reliable non-contact object detection in industrial automation and machine-control applications. Its miniature block-style construction makes it suitable for packaging machinery, conveyors, assembly equipment and other installations where available mounting space is limited.
As the receiver element of a through-beam sensing system, the QDRR/0N-0F is installed opposite a compatible photoelectric emitter. The receiver monitors the transmitted optical beam and changes its output state when an object interrupts the sensing path, providing dependable presence, position and product detection.
The QDRR/0N-0F features an NPN transistor output and an M8 plug connection for convenient integration into industrial control systems. The detachable connector simplifies installation and sensor replacement, while the through-beam operating principle provides reliable detection independently of the target's surface reflectivity.
Key Advantages
- Dedicated through-beam photo-electric receiver for reliable industrial object detection.
- Through-beam operation provides dependable detection across a defined optical path.
- NPN transistor output supports integration with compatible PLC and machine-control inputs.
- M8 plug connection simplifies installation, servicing and replacement.
- Compact block-style construction suits space-restricted machinery.
- Detection is less dependent on target colour or surface reflectivity than diffuse sensing.
- Non-contact operation reduces mechanical wear in high-cycle automation applications.
Key Features
- IMO photo-electric switch.
- Through-beam receiver.
- Designed for use with a compatible through-beam emitter.
- NPN transistor output.
- M8 plug electrical connection.
- Compact rectangular block housing.
- Non-contact optical object detection.
- Separate emitter and receiver sensing arrangement.
- Suitable for PLC and industrial machine-control systems.
- Ideal for product, component and position monitoring.
Reliable Through-Beam Detection for Industrial Automation
Through-beam photoelectric sensing uses separate transmitter and receiver devices mounted opposite one another. The emitter generates an optical beam that is monitored continuously by the QDRR/0N-0F receiver. When a product or component passes between the two sensors and interrupts the beam, the receiver changes its electronic output state.
Because detection is based primarily on interruption of the beam rather than light reflected from the target itself, through-beam sensing is well suited to applications involving objects with different colours, finishes or levels of reflectivity. The compact IMO QDRR/0N-0F combines this dependable operating principle with NPN switching and convenient M8 connectivity for industrial machinery.
Typical Applications
- Conveyor product and package detection.
- Packaging and processing machinery.
- Material-handling systems.
- Component presence monitoring.
- Assembly and manufacturing equipment.
- Counting products passing through a sensing point.
- Position and passage detection.
- PLC-controlled industrial automation systems.
