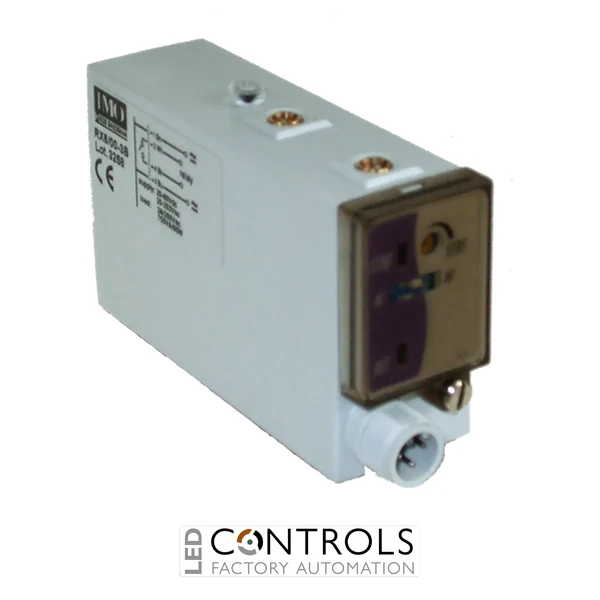

Why Choose the IMO RX8/00-1A Photo-Electric Switch?
The IMO RX8/00-1A is a high-performance diffuse reflection photoelectric sensor designed for reliable non-contact object detection in industrial automation and machinery applications. As part of the RX series of rectangular photoelectric sensors, it combines a long sensing range with a compact housing and flexible output configuration.
Using diffuse reflection technology, the RX8/00-1A detects objects from the light reflected directly back from the target, eliminating the need for a separate reflector or receiver. It provides a nominal sensing distance of up to 2 m, with sensitivity adjustment via an integrated trimmer to help optimise detection for different targets and operating conditions.
Operating from a 10–30 V DC supply, the RX8/00-1A features selectable NPN/PNP and NO/NC DECOUT® output, a fast 500 Hz switching frequency and a 1 ms response time. A standard M12 plug simplifies electrical connection, while the IP65-rated housing, status indicators and built-in electrical protection make the sensor well suited to demanding industrial installations.
Key Advantages
- Long-range diffuse reflection photoelectric sensing up to 2 m.
- Selectable NPN/PNP output provides flexible control-system integration.
- Selectable NO/NC output function supports different machine control requirements.
- 10–30 V DC operating voltage suitable for standard industrial control systems.
- Fast 1 ms response time for reliable detection in automated machinery.
- Trimmer adjustment allows sensing sensitivity to be optimised for the application.
- Standard M12 plug connection simplifies installation and replacement.
- IP65 protection supports reliable operation in industrial environments.
Key Features
- IMO RX series photoelectric sensor.
- Diffuse reflection sensing principle.
- 2 m nominal sensing distance.
- 10–30 V DC operating supply.
- Selectable DECOUT® NPN/PNP output.
- Selectable normally open / normally closed output.
- 500 Hz switching frequency.
- 1 ms response time.
- Infrared LED emitter with 880 nm wavelength.
- Sensitivity adjustment by trimmer.
- Red output/alignment and green stability LED indicators.
- Short-circuit and reverse-polarity protection.
- M12 plug electrical connection.
- IP65-rated rectangular housing.
Reliable Photoelectric Detection for Industrial Automation
Diffuse reflection photoelectric sensors detect objects by transmitting light towards a target and monitoring the light reflected back to the receiver. Because the target itself provides the reflected signal, applications can be implemented without installing a separate reflector or opposing receiver, helping simplify machine layouts and installation.
The RX8/00-1A combines a long 2 m sensing distance with selectable NPN/PNP and NO/NC operation, allowing it to integrate with a wide range of PLCs and industrial control systems. Its infrared emitter, adjustable sensitivity and fast switching performance make it suitable for detecting products, components and materials in automated production and handling equipment.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Product presence and position detection.
- Automated assembly equipment.
- Parts counting and object detection.
- Manufacturing and processing machinery.
- Warehouse and logistics automation.
- OEM machinery and industrial control systems.
