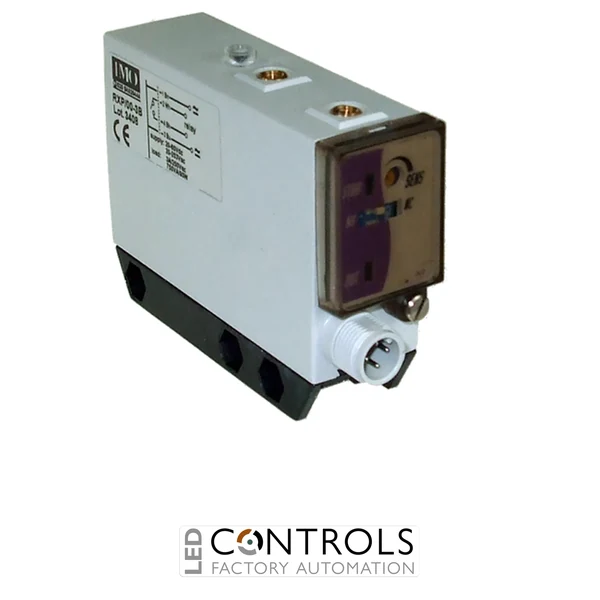

Why Choose the IMO RXP/00-3B Photo-Electric Switch?
The IMO RXP/00-3B is a robust polarised retro-reflective photoelectric sensor designed for reliable object detection in industrial machinery, material handling and automation systems. Using a polarised optical system with a reflector, it helps distinguish the intended reflected signal from unwanted reflections produced by shiny or reflective objects.
This rectangular photoelectric switch provides a nominal sensing distance of up to 6 m when used with the specified reflector. Its versatile multi-voltage supply supports both AC and DC installations, while the relay output provides straightforward integration with industrial control circuits, PLC interfaces and machine control equipment.
The RXP/00-3B features a standard M12 plug connection, sensitivity adjustment and visible LED indication for easier setup and diagnostics. With an IP65 enclosure and a durable polycarbonate housing, it is suitable for demanding industrial environments where dependable non-contact sensing is required.
Key Advantages
- Polarised retro-reflective sensing helps provide dependable detection of reflective and non-reflective targets.
- Long 6 m nominal sensing distance for machinery and conveyor applications.
- Wide 20–253 V AC / 20–60 V DC operating supply provides flexible control-system compatibility.
- Relay NO/NC output simplifies connection to industrial control equipment.
- Standard M12 plug supports quick installation and sensor replacement.
- Adjustable sensitivity allows the sensing response to be optimised for the application.
Key Features
- IMO RXP/00-3B polarised retro-reflective photoelectric switch.
- 6 m nominal sensing range with suitable reflector.
- 20–60 V DC / 20–253 V AC, 50/60 Hz supply.
- Relay SPST NO/NC output.
- Maximum relay load of 3 A at 250 V AC or 3 A at 30 V DC.
- 25 Hz switching frequency and approximately 20 ms response time.
- Red LED optical emission at approximately 660 nm.
- Sensitivity adjustment by integrated trimmer.
- LED indicators for output status and signal stability/alignment.
- M12 plug electrical connection.
- IP65 protection rating.
Reliable Polarised Retro-Reflective Detection
Polarised retro-reflective photoelectric sensors transmit light towards a reflector and monitor the returning beam. When an object interrupts the reflected light path, the sensor changes its output state, allowing machinery and control systems to detect the target without physical contact.
The polarisation principle makes the IMO RXP/00-3B particularly useful where shiny objects could otherwise create false reflections. Its adjustable sensitivity, relay output and multi-voltage power capability make it suitable for both new automation systems and replacement applications across a broad range of industrial machinery.
Typical Applications
- Industrial conveyor object detection.
- Packaging and production machinery.
- Material handling and transfer systems.
- Presence and position detection.
- Detection of reflective or shiny components.
- Automated manufacturing equipment.
- Machine control and PLC input applications.
