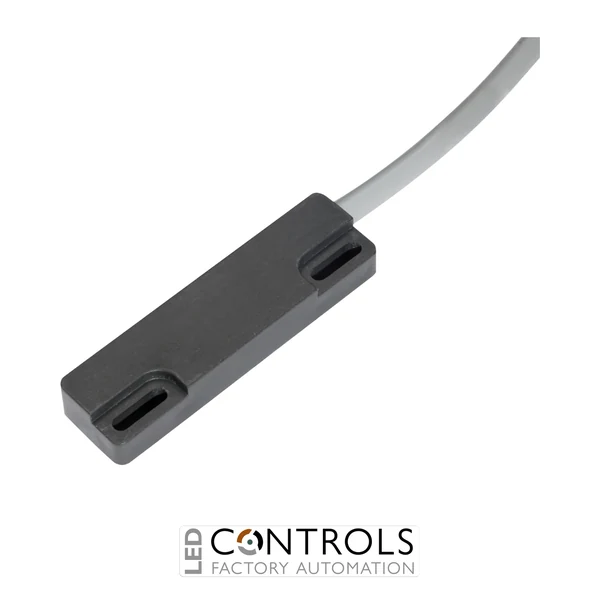

Why Choose the Carlo Gavazzi S.A.8 Magnetic Rectangular Proximity Sensor?
The Carlo Gavazzi S.A.8 is a robust rectangular magnetic proximity sensor designed for dependable non-contact position and presence detection in industrial automation. Part of the Carlo Gavazzi S Series, it combines a compact plastic housing with a magnetically operated reed contact for straightforward switching in machinery and control applications.
The S.A.8 features a normally open (NO) dry reed contact and supports a maximum switching distance of 32 mm, depending on the magnetic actuator and installation. Its high-voltage reed contact is rated for a maximum switching voltage of 1500 V AC, maximum switching current of 3 A and maximum switching power of 120 VA.
The rectangular sensor measures 11.5 × 79 × 21.2 mm and is supplied with a fixed 0.5 m PVC cable. With an operating temperature range of -25 °C to +75 °C and IP67 protection, the Carlo Gavazzi S.A.8 provides a durable solution for industrial position monitoring, machine automation and magnetically actuated switching.
Key Advantages
- Magnetic proximity sensing enables reliable non-contact position detection.
- Normally open reed contact provides simple magnetically actuated switching.
- Maximum switching distance of up to 32 mm.
- High maximum switching voltage of 1500 V AC.
- 3 A maximum switching current for industrial control applications.
- 120 VA maximum switching power.
- Integral 0.5 m PVC cable simplifies installation.
- IP67 protection supports use in demanding industrial environments.
Key Features
- Carlo Gavazzi S Series magnetic proximity sensor.
- Compact rectangular plastic housing.
- Side-operated magnetic sensing.
- Normally open (NO) dry reed contact.
- Maximum switching distance: 32 mm.
- Maximum switching voltage: 1500 V AC.
- Maximum switching current: 3 A.
- Maximum switching power: 120 VA.
- 0.5 m PVC cable.
- IP67 degree of protection.
- Operating temperature from -25 °C to +75 °C.
- Two mounting holes support straightforward installation.
- CE certification available for the SA8.
Reliable Magnetic Position Detection for Industrial Machinery
Magnetic proximity sensors detect an external magnetic field without requiring physical contact between the sensor and the moving component. In the Carlo Gavazzi S.A.8, the magnetic field operates an internal normally open dry reed contact, providing a simple and dependable switching signal for industrial control applications.
The S Series rectangular housing is designed for side operation and includes two mounting holes for quick installation. A range of compatible magnetic units allows different operating distances to be achieved, while the S.A.8 itself supports switching distances up to 32 mm. Its IP67 construction and high-voltage reed contact make it particularly useful where robust non-contact switching is required.
Typical Applications
- Industrial machine position detection.
- End-of-travel and limit monitoring.
- Door, gate and access position detection.
- Automated production machinery.
- Material-handling equipment.
- Moving component position monitoring.
- Industrial control and switching circuits.
- Applications requiring magnetically actuated non-contact switching.
