Why Choose the Carlo Gavazzi S142APPT230 Photoelectric Amplifier?

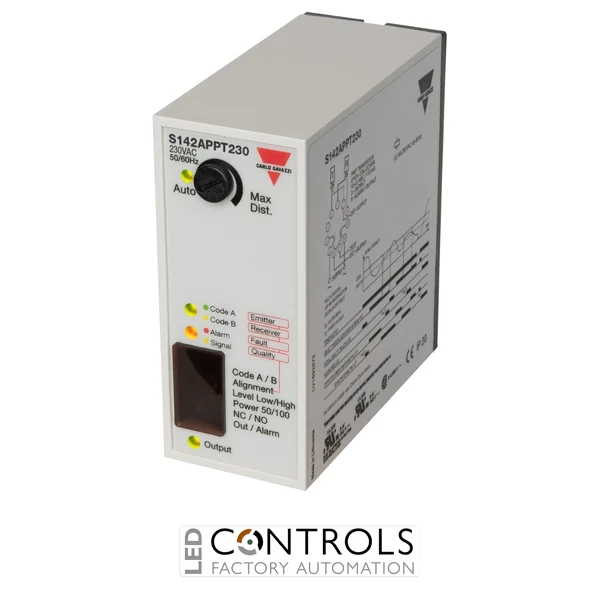

The Carlo Gavazzi S142APPT230 is a single-channel photoelectric sensor amplifier designed for use with separate through-beam photoelectric sensors in industrial automation and machine-control applications. Part of the Carlo Gavazzi S142 amplifier family, it provides reliable signal processing, adjustable sensitivity and diagnostic functions for dependable object detection.
The S142APPT230 supports through-beam sensing systems with an operating range of up to 50,000 mm, depending on the connected emitter and receiver. Adjustable sensitivity and built-in alignment assistance simplify commissioning, while light-on and dark-on switching capability provides flexibility for different detection requirements.
Powered from a 230 V AC supply, the S142APPT230 provides PNP transistor outputs and connects through an 11-pole plug-in connection. Its compact rectangular housing, diagnostic functionality and test input make it well suited to industrial machinery where reliable long-range photoelectric detection is required.
Key Advantages
- Dedicated single-channel amplifier for through-beam photoelectric sensors.
- Supports sensing distances of up to 50,000 mm with compatible sensor heads.
- 230 V AC supply suitable for industrial control installations.
- PNP transistor outputs for integration with automation control systems.
- Adjustable sensitivity allows optimisation for the application and sensing distance.
- Diagnostic functions and alignment assistance simplify setup and maintenance.
- Light-on and dark-on switching provides flexible detection logic.
Key Features
- Carlo Gavazzi S142 series photoelectric amplifier.
- 1-channel sensing configuration.
- Designed for separate through-beam emitter and receiver sensors.
- Maximum rated operating distance of 50 m.
- 230 V AC rated operating voltage.
- PNP transistor output configuration.
- Transistor load rating up to 100 mA at 40 V DC.
- Adjustable sensitivity and alignment assistance.
- Selectable light-on / dark-on switching operation.
- Integrated test / emitter mute input.
- 20 Hz operating frequency.
- 11-pole plug-in connection.
- IP20 degree of protection.
- CE, UL and CSA approved.
Reliable Long-Range Photoelectric Detection for Industrial Automation
Separate-amplifier through-beam photoelectric systems use an emitter and receiver positioned opposite one another, with the amplifier processing the received optical signal. Interrupting the beam provides a dependable indication of an object, making this sensing principle particularly suitable for long-range detection and applications requiring reliable presence monitoring.
The Carlo Gavazzi S142APPT230 enhances this arrangement with adjustable sensitivity, diagnostic functions and alignment assistance. Its PNP outputs and 230 V AC supply make it a practical choice for integrating compatible Carlo Gavazzi through-beam sensors into industrial control and automation systems.
Typical Applications
- Conveyor object and product detection.
- Packaging and production machinery.
- Long-range through-beam sensing systems.
- Material handling and logistics equipment.
- Machine presence and position monitoring.
- Industrial doors and access-control equipment.
- OEM automation and machine-building systems.
