Why Choose the Carlo Gavazzi S142BPPT230 Photoelectric Amplifier?

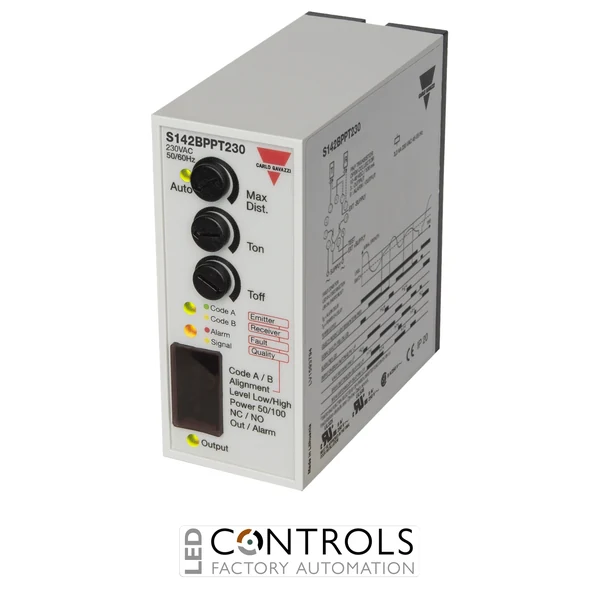

The Carlo Gavazzi S142BPPT230 is a single-channel photoelectric sensor amplifier with integrated timer functionality designed for use with compatible MOFTR through-beam photoelectric sensor heads. Part of the Carlo Gavazzi S142 Series, it combines sensor signal processing, dual PNP outputs, diagnostics and adjustable timing functions in a compact industrial control module.
The S142BPPT230 supports compatible through-beam sensing systems with a range of up to 50 m, making it suitable for long-distance object and presence detection. Adjustable sensitivity, alignment assistance and diagnostic functions help simplify commissioning and maintain reliable detection, while test and alarm functionality provides additional monitoring capability during machine operation.
Designed for a nominal 230 V AC supply, the S142BPPT230 provides two PNP outputs and an integrated adjustable time-delay function. Its 11-pin plug-in connection enables convenient socket mounting in industrial control systems, while UL and CSA approvals support its use in a wide range of machinery and automation applications.
Key Advantages
- Dedicated single-channel photoelectric amplifier with timer for industrial sensing systems.
- Supports compatible through-beam sensing distances of up to 50 m.
- Dual PNP outputs provide flexible integration with industrial control equipment.
- Integrated adjustable time-delay functionality supports application-specific switching sequences.
- Adjustable sensitivity enables accurate configuration for different sensing conditions.
- Diagnostic and alignment functions simplify installation and ongoing maintenance.
- Integrated test and alarm functionality assists sensor-system monitoring.
- 11-pin plug-in design provides convenient socket-mounted installation.
Key Features
- Carlo Gavazzi S142 Series photoelectric amplifier.
- Single sensing channel.
- Designed for compatible MOFTR through-beam photoelectric sensors.
- Up to 50 m sensing range with compatible sensor heads.
- 2 × PNP transistor outputs.
- 230 V AC nominal supply.
- Integrated adjustable timer functionality.
- Selectable light-on / dark-on operation.
- Adjustable sensitivity for precise sensor setup.
- Diagnostic functions for sensor monitoring.
- Alignment assistance for through-beam commissioning.
- Test input and alarm functionality.
- 11-pin plug-in connection for socket mounting.
- IP20 protection rating.
Reliable Timed Photoelectric Control for Industrial Automation
Through-beam photoelectric systems use separate transmitter and receiver sensor heads, with an object detected when it interrupts the optical path between them. An external amplifier such as the Carlo Gavazzi S142BPPT230 processes this sensing signal and converts it into switching outputs that can be used by PLCs and other industrial control equipment.
The S142BPPT230 adds adjustable timing, diagnostics, test functionality and alignment assistance to the sensing system. These capabilities are particularly useful in automated machinery where a detected object must trigger a controlled delay or where continuous monitoring of sensor performance is important for reliable production.
Typical Applications
- Long-range through-beam object detection.
- Industrial conveyor and material handling systems.
- Packaging and production machinery.
- Timed product presence and position detection.
- Automatic doors, gates and access equipment.
- Warehouse and logistics automation.
- Machine entry and exit monitoring.
- OEM machinery and industrial control systems.
