Why Choose the Carlo Gavazzi S142CRXA924 Photoelectric Amplifier?

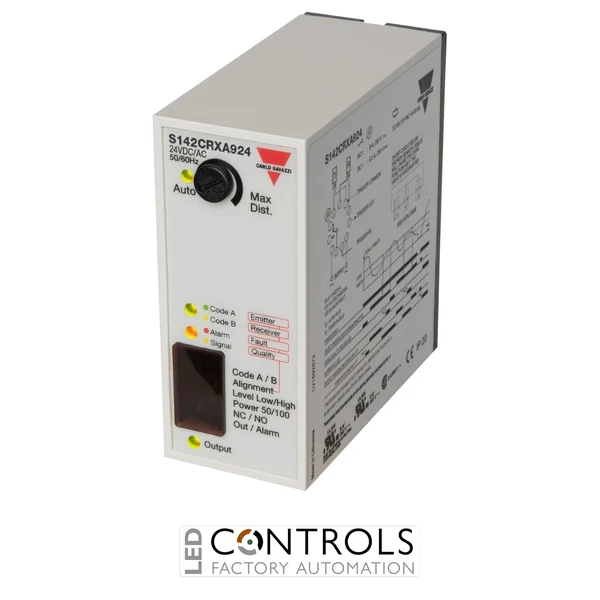

The Carlo Gavazzi S142CRXA924 is a single-channel photoelectric amplifier with SPDT relay output and multiplex functionality, designed for compatible through-beam photoelectric sensor heads in industrial machinery and automation systems. As part of the Carlo Gavazzi S142 series, it combines automatic distance adjustment, sensor diagnostics and a Master/Slave multiplex system for dependable detection where multiple photoelectric channels operate in close proximity.
Designed for through-beam sensing applications, the S142CRXA924 supports sensing distances of up to 50,000 mm (50 m) with compatible sensor heads. Its multiplex Master/Slave function provides high immunity to interference from neighbouring photoelectric systems, making it particularly suitable for conveyor, material-handling and production installations requiring several adjacent sensing beams.
The S142CRXA924 operates from a nominal 24 V AC/DC supply and provides an SPDT relay output. Automatic sensing-distance adjustment, diagnostic functionality and an 11-pole plug connection simplify setup and integration into industrial control systems, while the compact amplifier housing is suitable for control-panel and socket-mounted installations.
Key Advantages
- Dedicated single-channel amplifier for through-beam photoelectric sensors.
- Supports sensing ranges of up to 50 m with compatible sensor heads.
- Master/Slave multiplex functionality provides high immunity to neighbouring sensor interference.
- Automatic sensing-distance adjustment simplifies commissioning and optimisation.
- SPDT relay output provides flexible integration with industrial control circuits.
- Convenient 24 V AC/DC supply suits common industrial control systems.
- Integrated sensor diagnostic functions assist setup and maintenance.
- 11-pole plug connection enables straightforward installation and replacement.
Key Features
- Carlo Gavazzi S142 series photoelectric amplifier.
- Single-channel amplifier configuration.
- Designed for compatible through-beam photoelectric sensor heads.
- Maximum sensing distance up to 50,000 mm (50 m).
- 24 V AC/DC rated operating voltage.
- SPDT relay output.
- Resistive relay load capability up to 10 A at 250 V AC / 25 V DC.
- Automatic distance adjustment.
- Master/Slave multiplex function for high neighbouring-sensor immunity.
- Operating frequency up to 15 Hz with two multiplex systems.
- Operating frequency up to 4 Hz with six multiplex systems.
- Integrated sensor diagnostic functionality.
- 11-pole plug connection.
- Compact 35 × 80 × 81.5 mm housing.
- IP20 protection rating.
Multiplex Photoelectric Detection for Industrial Automation
A photoelectric amplifier processes signals from separate through-beam emitter and receiver heads and converts the detected optical condition into an electrical switching signal for the machine-control system. Through-beam arrangements provide dependable long-distance detection, while locating the amplifier separately gives engineers convenient access to adjustment, diagnostics and output connections.
The Carlo Gavazzi S142CRXA924 incorporates automatic sensing-distance adjustment and a Master/Slave multiplex function specifically intended to provide high immunity to interference between neighbouring photoelectric systems. This makes it particularly useful where several through-beam sensors are installed close together and reliable detection must be maintained without unwanted optical interaction.
Typical Applications
- Long-range through-beam object detection.
- Multiple adjacent photoelectric sensing systems.
- Industrial conveyors and material handling equipment.
- Packaging and production machinery.
- Warehouse and logistics automation.
- Automated manufacturing and assembly lines.
- Presence and position monitoring.
- Industrial machine-control systems.
