Why Choose the Carlo Gavazzi SA2 Rectangular Magnetic Sensor?
The Carlo Gavazzi SA2 is a compact and reliable rectangular magnetic proximity sensor designed for non-contact position and presence detection in industrial automation systems. As part of the Carlo Gavazzi S series, it uses a normally open reed contact that switches when a suitable magnetic actuator enters the sensor's operating range.

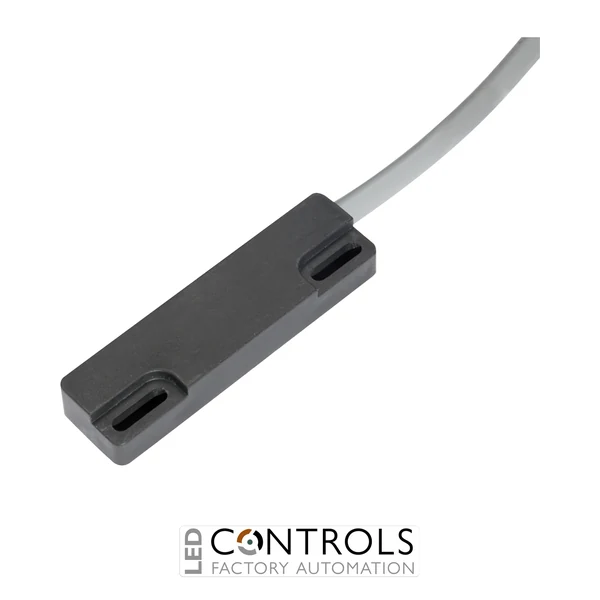

The SA2 features a durable plastic rectangular housing with side operation and two mounting holes for straightforward installation. Its passive reed-switch principle requires no separate sensor power supply, making it a simple and dependable solution for monitoring doors, guards, machine components and other magnetically actuated mechanisms.
With a maximum switching distance of 32 mm, maximum contact switching voltage of 250 V AC, switching current up to 3 A and switching power up to 100 VA, the SA2 provides substantial switching capability in a compact sensor. A 0.5 m PVC cable and IP67 enclosure protection support reliable integration into demanding industrial environments.
Key Advantages
- Compact rectangular magnetic proximity sensor for industrial applications.
- Normally open reed contact provides simple non-contact switching.
- Maximum switching distance of 32 mm with a suitable magnetic actuator.
- Handles switching currents up to 3 A and switching power up to 100 VA.
- IP67 protection supports use in demanding industrial environments.
- Integrated 0.5 m PVC cable simplifies electrical connection.
Key Features
- Carlo Gavazzi S series magnetic proximity sensor.
- Normally open (NO) dry reed contact.
- Rectangular plastic housing with side operation.
- 32 mm maximum switching distance.
- 250 V AC maximum switching voltage.
- 3 A maximum switching current.
- 100 VA maximum switching power.
- 0.5 m PVC cable connection.
- IP67 degree of protection.
- Wide -25 to +75 °C operating temperature range.
- Compact 79 × 21.2 × 11.5 mm housing.
Reliable Magnetic Proximity Detection for Industrial Machinery
Magnetic proximity sensors such as the Carlo Gavazzi SA2 detect the presence of a magnetic actuator without requiring physical contact between the sensor and moving component. The reed contact changes state when the magnet reaches the required operating position, providing a simple electrical signal for machine-control, indication or monitoring circuits.
The SA2's sealed rectangular construction, wide operating temperature range and IP67 protection make it well suited to industrial installations where reliable non-contact switching is required. Its compact housing and mounting holes allow convenient positioning alongside moving machine parts, doors and other magnetically actuated mechanisms.
Typical Applications
- Machine position and presence detection.
- Industrial door and access monitoring.
- Guard and enclosure position sensing.
- Conveyor and material handling equipment.
- Automated production machinery.
- Magnetically actuated switching systems.
