Why Choose the Carlo Gavazzi SHA4XP150L Aurora PIR Sensor?

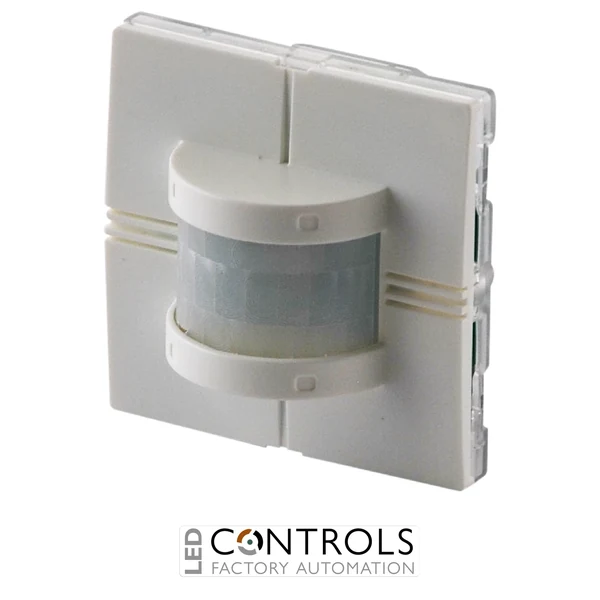

The Carlo Gavazzi SHA4XP150L is a compact 44 × 44 mm Aurora passive infrared (PIR) sensor with integrated luxmeter designed for intelligent presence, movement and light-level detection in Carlo Gavazzi Smart Dupline® building automation systems. It combines PIR occupancy sensing with ambient light measurement to provide automatic control of lighting, blinds, air conditioning, alarms and other smart-house functions.
This sensor provides a wide 150° detection angle and a maximum operating distance of 10 m, making it suitable for indoor occupancy monitoring applications. The built-in luxmeter measures light levels from 0 to 20 kLux, allowing automation systems to respond intelligently to both human presence and available ambient light.
Designed for discreet indoor installation, the SHA4XP150L is bus powered and requires no external power supply. It features programmable white and blue LEDs, dual detection zones and compatibility with Fuga, Niko and Bticino wall socket and frame systems for flexible smart-building integration.
Key Advantages
- Combined PIR presence sensor and luxmeter for intelligent building automation.
- 150° detection angle provides wide indoor coverage.
- 10 m maximum operating distance for reliable occupancy detection.
- Integrated lux measurement from 0 to 20 kLux for lighting optimisation.
- Bus-powered design eliminates the need for separate power wiring.
- Programmable LED indicators provide clear sensor status feedback.
Key Features
- Carlo Gavazzi Aurora Smart Dupline® PIR sensor series.
- Passive infrared presence and movement detection.
- Integrated luxmeter function.
- 150° detection field.
- Maximum detection range of 10 m.
- 44 × 44 mm compact housing.
- Dual detection zones for improved occupancy recognition.
- Programmable white and blue LED indicators.
Intelligent Presence and Light-Level Control for Building Automation
PIR sensors with integrated luxmeters, such as the Carlo Gavazzi SHA4XP150L, combine occupancy detection with ambient light measurement to improve energy efficiency in modern buildings. The sensor enables automatic lighting control by detecting movement and evaluating available natural light levels.
The Aurora range is designed for smart-house and building automation installations where reliable occupancy detection, programmable operation and seamless Smart Dupline® integration are required.
Typical Applications
- Smart building automation systems.
- Automatic lighting control.
- Presence and occupancy monitoring.
- Energy-saving lighting solutions.
- Climate control and HVAC automation.
- Security and intrusion monitoring applications.
