Why Choose the Carlo Gavazzi SHE5XP150L Aurora PIR Sensor with Luxmeter?

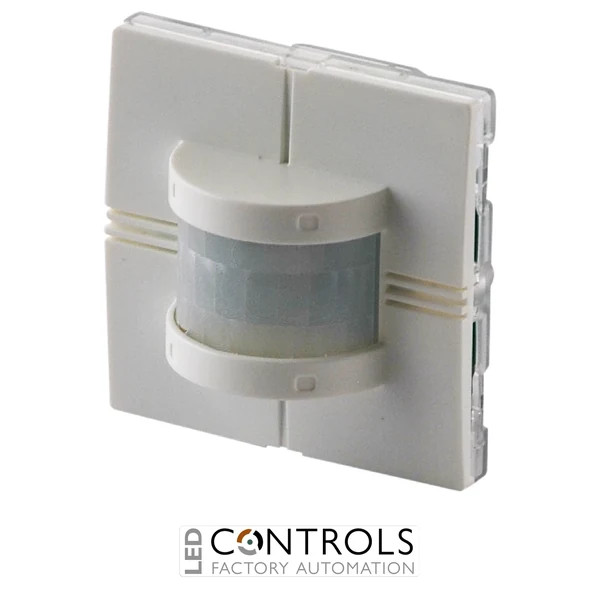

The Carlo Gavazzi SHE5XP150L is a 55 × 55 mm Smart Dupline PIR presence and movement sensor with integrated luxmeter, designed for intelligent indoor building automation. Combining passive infrared occupancy detection with ambient-light measurement in a single wall-mounted device, it enables lighting and other building functions to respond intelligently to both occupancy and available light.
The SHE5XP150L provides a wide 150° detection angle and a PIR operating distance of up to 10 m. Its integrated luxmeter adds light-level sensing, allowing Smart Dupline control strategies to take ambient illumination into account when controlling lighting, helping improve comfort and energy efficiency.
Designed around the standard 55 × 55 mm format, the sensor is suitable for installation in compatible Elko, Gira and Jung wall sockets and frames. It is powered directly from the Smart Dupline bus, eliminating the need for a separate sensor power supply, and includes programmable white and blue LEDs for presence and movement indication.
Key Advantages
- Combines PIR presence/movement detection and lux measurement in one device.
- Wide 150° PIR detection angle for effective room coverage.
- Operating distance of up to 10 m.
- Integrated luxmeter enables light-dependent building automation.
- Standard 55 × 55 mm format for compatible wall sockets and frames.
- Smart Dupline bus powered, requiring no separate external power supply.
- Programmable white and blue LEDs provide flexible presence and movement indication.
Key Features
- Carlo Gavazzi Smart Dupline sensor.
- Passive infrared (PIR) presence and movement detection.
- Integrated luxmeter for ambient-light measurement.
- 150° detection angle.
- Up to 10 m operating distance.
- 55 × 55 mm standard housing format.
- Designed for indoor applications.
- Powered directly from the Smart Dupline bus.
- Programmable white and blue LED indicators.
- Designed for compatible Elko, Gira and Jung wall sockets and frames.
- Supplied with two white and one black covers.
- Suitable for lighting, blinds, HVAC and security-related automation functions.
Integrated Presence and Light Sensing for Smart Building Automation
The Carlo Gavazzi SHE5XP150L combines two important building-control measurements in one compact device. Its PIR element detects presence and movement, while the integrated luxmeter monitors ambient light. A Smart Dupline installation can therefore make control decisions based not only on whether a space is occupied but also on whether additional artificial lighting is actually required.
This combination is particularly useful for energy-conscious lighting automation in offices, meeting rooms, corridors and residential spaces. The SHE5XP150L can also participate in broader Smart Dupline control strategies involving roller blinds, air conditioning, intruder alarms and other supported building functions.
Typical Applications
- Occupancy-based indoor lighting control.
- Daylight-dependent lighting automation.
- Office and meeting-room presence detection.
- Corridor and circulation-area movement monitoring.
- Smart home and intelligent building systems.
- Automatic roller-blind control.
- HVAC and air-conditioning occupancy control.
- Energy-management and lighting optimisation.
- Security and intruder-alarm automation functions.
