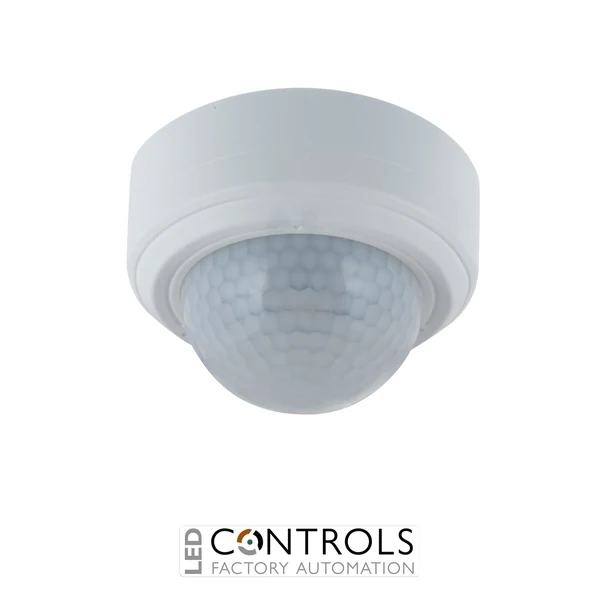

Why Choose the Carlo Gavazzi SHQP360L7MF 360° PIR Sensor?
The Carlo Gavazzi SHQP360L7MF is an advanced 360° surface-mount PIR presence and movement sensor with integrated lux sensor designed for intelligent building automation applications. Part of the Carlo Gavazzi Smart-Dupline range, it combines occupancy detection and ambient light measurement in one compact device for automatic control of lighting, blinds, air conditioning and other building functions.
The SHQP360L7MF features a 360° passive infrared detection field with an operating range of up to 7.5 m and an integrated luxmeter measuring ambient light levels from 0 to 20 klux. The sensor is fully programmable through the Sx/UWP tool, allowing installers to configure detection behaviour, sensitivity and automation functions according to application requirements.
Designed for indoor surface mounting and powered directly from the Dupline® bus, the Carlo Gavazzi SHQP360L7MF provides a practical and energy-efficient solution for smart lighting control, room automation and occupancy-based building management systems.
Key Advantages
- 360° PIR presence and movement detection provides complete room coverage from a single sensor.
- Integrated lux sensor enables automatic lighting control based on ambient brightness.
- 7.5 m detection range makes it suitable for offices, corridors and indoor spaces.
- Bus-powered Dupline® technology simplifies installation and system integration.
- Programmable detection parameters allow optimisation for different environments.
- Combines occupancy sensing and light measurement in one compact device.
- Suitable for smart building and energy-saving automation applications.
Key Features
- Carlo Gavazzi Smart-Dupline series.
- 360° passive infrared (PIR) sensor.
- Presence and movement detection.
- Maximum operating distance of 7.5 m.
- Integrated luxmeter with 0–20 klux measurement range.
- Programmable detection sensitivity and operating behaviour.
- Indoor surface-mount installation.
- Blue LED status indication.
- Dupline® bus-powered operation.
- Automatic addressing through SIN identification.
- Programmable through Sx/UWP configuration tools.
Intelligent Occupancy Detection for Building Automation
PIR sensors detect changes in infrared radiation caused by human movement and presence, allowing building automation systems to respond automatically to room occupancy. When combined with a lux sensor, the system can optimise lighting operation by considering both occupancy and available natural light.
The Carlo Gavazzi SHQP360L7MF provides a compact, programmable solution for smart-house and building automation systems. Its Dupline® communication technology allows integration with lighting, climate-control and security functions while reducing installation complexity.
Typical Applications
- Automatic lighting control systems.
- Office and commercial building automation.
- Energy-saving occupancy detection.
- Smart-house installations.
- Meeting rooms and corridors.
- HVAC and comfort-control applications.
- Presence-based security and monitoring systems.
