Why Choose the Carlo Gavazzi SHSPP90LA Indoor PIR Sensor with Lux Sensor?

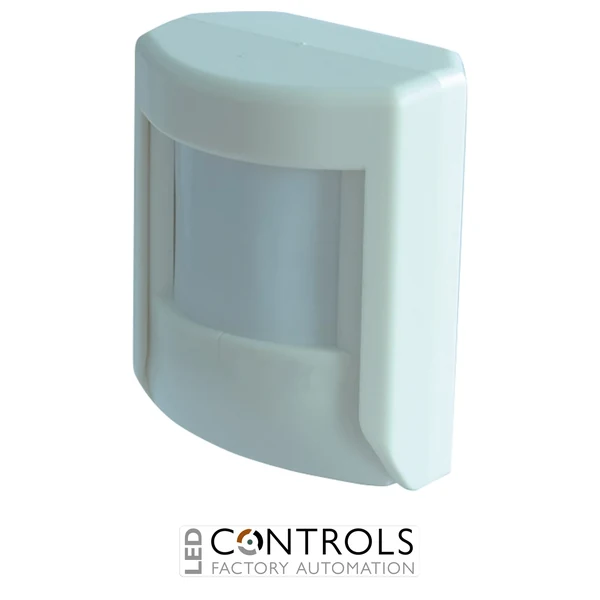

The Carlo Gavazzi SHSPP90LA is an advanced indoor passive infrared (PIR) presence sensor with integrated lux sensor designed for smart-house and Smart Dupline® building automation systems. It combines occupancy detection and ambient light measurement in a single device, enabling automatic control of lighting, blinds, air conditioning, intrusion alarms and other building functions.
This sensor uses passive infrared technology to detect human presence and movement while the integrated luxmeter measures available light levels. The 90° detection angle and up to 13 m operating distance provide reliable coverage for indoor installations, while programmable settings allow the sensor behaviour to be customised through the SH tool.
Designed for Smart Dupline® installations, the SHSPP90LA is bus powered and does not require a separate external power supply. Its compact wall-mounted housing, blue LED indication and IP20 protection make it suitable for intelligent building automation applications where reliable occupancy and light-level monitoring are required.
Key Advantages
- Combined PIR presence detection and lux measurement in one compact sensor.
- 90° detection angle for effective indoor coverage.
- Up to 13 m operating distance for reliable movement and presence detection.
- Integrated lux sensor with 0 to 20 kLux measurement range.
- Smart Dupline® bus-powered operation removes the need for separate power wiring.
- Programmable detection parameters and LED indication for flexible operation.
Key Features
- Carlo Gavazzi Smart Dupline® PIR sensor series.
- Passive infrared presence and movement detection.
- Integrated lux sensor for ambient light monitoring.
- 90° detection field.
- Maximum operating distance of 13 m.
- Indoor wall-mounted design.
- Blue programmable LED indication.
- Automatic addressing through Smart Dupline® controller identification.
Intelligent Presence and Light Control for Smart Buildings
PIR sensors with integrated lux measurement, such as the Carlo Gavazzi SHSPP90LA, allow building automation systems to respond intelligently to both occupancy and ambient lighting conditions. This enables more efficient lighting control and improved energy management in commercial and residential environments.
The Smart Dupline® range is designed for flexible automation installations where reliable detection, programmable operation and simple system integration are required.
Typical Applications
- Smart building automation systems.
- Automatic lighting control.
- Occupancy and presence monitoring.
- Energy-saving lighting solutions.
- HVAC and climate control automation.
- Security and intrusion detection systems.
