Why Choose the Carlo Gavazzi UA12BLD02PPM1TR Ultrasonic Sensor?

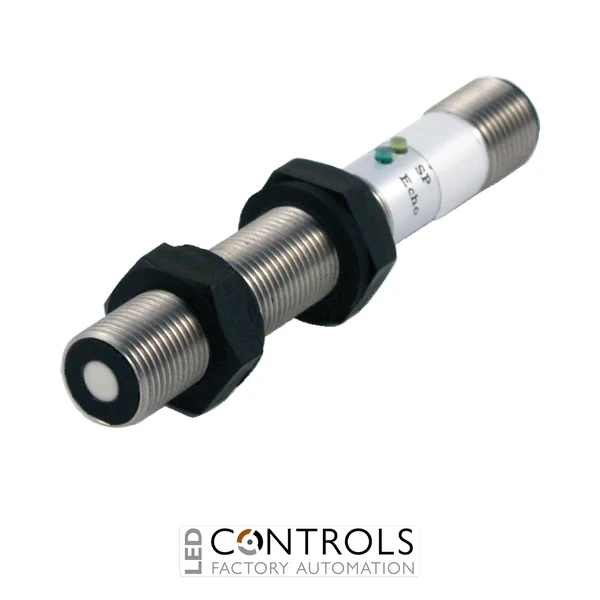

The Carlo Gavazzi UA12BLD02PPM1TR is a compact diffuse reflective ultrasonic proximity sensor designed for precise non-contact object detection and level control in industrial automation systems. As part of the Carlo Gavazzi UA12 ultrasonic sensor series, it combines an integrated amplifier, microprocessor-controlled electronics and a robust stainless steel M12 housing for dependable sensing in demanding machinery applications.
The UA12BLD02PPM1TR provides an adjustable 25–200 mm sensing distance and uses true distance measurement with digitally filtered sensor electronics. Because ultrasonic sensing is based on reflected sound rather than visible light, the sensor can detect many objects regardless of colour or optical contrast, making it particularly useful where conventional photoelectric sensors may be unsuitable.
Operating from a 10–30 V DC supply, the UA12BLD02PPM1TR features a PNP open-collector switching output configurable as NO or NC through remote teach. Its M12 4-pin plug, 20 Hz operating frequency, IP65 protection and compact M12 × 79 mm construction enable straightforward integration into PLC-controlled production machinery, conveyors and level monitoring systems.
Key Advantages
- Compact diffuse reflective ultrasonic sensor for non-contact detection.
- Adjustable 25–200 mm sensing distance for flexible machine installation.
- PNP NO/NC switching output configurable using remote teach.
- 10–30 V DC supply compatible with common industrial automation systems.
- Durable stainless steel M12 housing with IP65 ingress protection.
- Microprocessor-controlled and digitally filtered electronics support precise distance measurement.
Key Features
- Carlo Gavazzi UA12 ultrasonic sensor series.
- 25–200 mm rated operating distance.
- PNP open-collector output configurable as normally open or normally closed.
- 10–30 V DC rated operating voltage.
- Maximum continuous output current of 100 mA.
- 20 Hz operating frequency.
- Remote teach by wire for convenient sensor configuration.
- M12 4-pin plug electrical connection.
- Compact M12 × 79 mm stainless steel housing.
- IP65 protection rating for industrial environments.
- Integrated short-circuit, reverse-polarity and transient protection.
- Yellow set-point and green echo LED indication.
Reliable Ultrasonic Detection for Industrial Automation
Ultrasonic proximity sensors operate by transmitting high-frequency sound towards a target and evaluating the reflected echo. This true distance measurement principle allows the Carlo Gavazzi UA12BLD02PPM1TR to provide reliable non-contact detection without depending on the colour or visible contrast of the target.
The UA12BLD02PPM1TR combines remote teach configuration with a PNP switching output that can be configured for NO or NC operation. Its compact stainless steel construction and integrated amplifier make it particularly suitable for PLC-controlled machinery, automated production equipment and level control applications where installation space and reliable sensing performance are important.
Typical Applications
- Industrial level control and monitoring.
- Object presence and position detection.
- Packaging and production machinery.
- Conveyor and materials handling systems.
- Container and component detection.
- Automated assembly equipment.
- Industrial process monitoring.
- OEM machinery and PLC-controlled automation systems.
