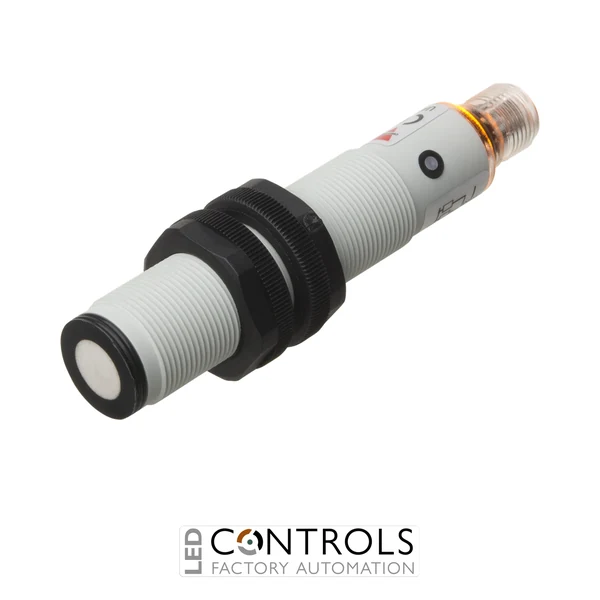

Why Choose the Carlo Gavazzi UA18CAD22PGM1TI Ultrasonic Sensor?
The Carlo Gavazzi UA18CAD22PGM1TI is a versatile M18 diffuse-reflective ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation applications. Part of the UA18CAD Series, it provides a broad sensing range from 200 to 2200 mm, making it suitable for applications where conventional optical sensing may be affected by target colour, transparency or surface finish.
Featuring a combined 4–20 mA analogue output and PNP transistor output, the UA18CAD22PGM1TI can provide both continuous distance information and a discrete switching signal from a single sensor. Integrated Teach-In adjustment simplifies configuration, while the standard M12 connector supports convenient installation and replacement.
The sensor's compact M18 threaded cylindrical housing enables straightforward mounting on machines, conveyors and automated production equipment. Its ultrasonic operating principle provides reliable detection without physical contact with the target, making the UA18CAD22PGM1TI a practical solution for distance measurement, level monitoring and presence detection applications.
Key Advantages
- Wide 200–2200 mm ultrasonic sensing range.
- Combined 4–20 mA analogue and PNP switching outputs.
- Provides both continuous measurement and discrete object detection functionality.
- Teach-In configuration simplifies commissioning and adjustment.
- Ultrasonic sensing is largely independent of target colour and optical contrast.
- Compact M18 threaded housing supports straightforward machine mounting.
- M12 connector enables convenient wiring and sensor replacement.
Key Features
- Carlo Gavazzi UA18CAD Series ultrasonic proximity sensor.
- Diffuse-reflective ultrasonic sensing principle.
- M18 cylindrical threaded housing.
- 200–2200 mm rated operating distance.
- 4–20 mA analogue output for continuous measurement.
- PNP transistor output for switching applications.
- Teach-In adjustment for convenient sensor configuration.
- M12 plug connection.
- Non-contact detection for reduced mechanical wear.
- Designed for industrial automation and process monitoring applications.
Reliable Ultrasonic Distance Measurement and Detection
Ultrasonic sensors determine the presence or distance of a target by transmitting high-frequency sound pulses and measuring the returning echo. Because this detection principle does not depend on visible light, it can provide reliable sensing of many objects regardless of their colour or optical contrast.
The Carlo Gavazzi UA18CAD22PGM1TI adds flexibility by combining a 4–20 mA measurement signal with a PNP switching output. This allows one sensor to provide continuous distance or level information while simultaneously supplying a discrete control signal, reducing the need for separate sensing devices in suitable automation applications.
Typical Applications
- Non-contact distance measurement.
- Tank, hopper and container level monitoring.
- Object presence and position detection.
- Packaging and production machinery.
- Material handling and conveyor systems.
- Industrial automation and process control.
