Why Choose the Carlo Gavazzi UA30CAD35NGM1TI Ultrasonic Sensor?

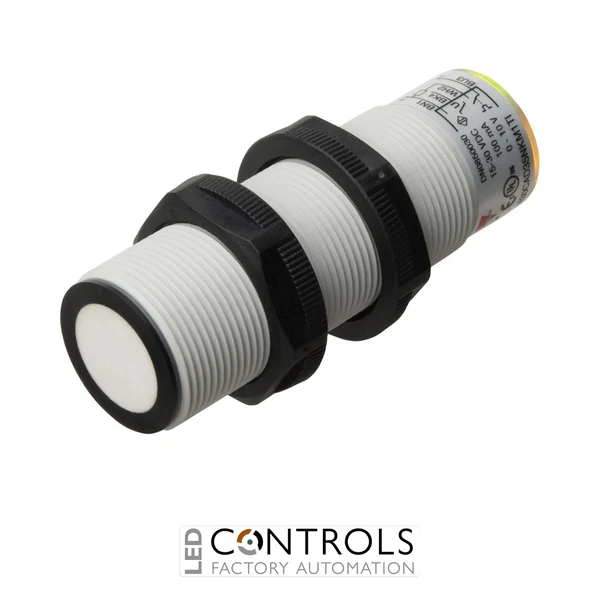

The Carlo Gavazzi UA30CAD35NGM1TI is a robust M30 diffuse-reflective ultrasonic sensor with 4–20 mA analogue output and NPN switching output, designed for precise non-contact distance measurement, level monitoring and industrial automation applications. Part of the advanced Carlo Gavazzi UA30CAD ultrasonic sensor series, it combines analogue measurement with digital switching capability in a compact industrial housing.
The sensor provides a wide 250–3500 mm sensing range and uses microprocessor-controlled ultrasonic technology to deliver accurate measurement with reliable operation in challenging environments. Its combined 4–20 mA analogue output and NPN switching output allow integration into PLC systems, control equipment and process-monitoring applications.
Featuring a durable M30 PBT cylindrical housing, IP67 protection rating and an M12 plug connection, the UA30CAD35NGM1TI is designed for dependable use in industrial machinery, material handling systems and automation installations. The integrated teach-in function simplifies configuration of sensing points for different applications.
Key Advantages
- Advanced non-contact ultrasonic measurement for industrial automation.
- Extended 250–3500 mm sensing range for distance and level applications.
- 4–20 mA analogue output provides continuous measurement feedback.
- NPN switching output enables direct machine-control integration.
- Teach-in function allows simple configuration of sensing points.
- Detects objects independently of colour, transparency and surface appearance.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi UA30CAD series ultrasonic sensor.
- Diffuse-reflective ultrasonic sensing principle.
- 250–3500 mm sensing distance.
- 4–20 mA analogue output.
- 1 × NPN switching output.
- Teach-in adjustment for sensing point configuration.
- M30 PBT cylindrical housing.
- M12 plug connection.
- ±6° beam angle.
- Short-circuit, reverse-polarity and overvoltage protection.
Reliable Ultrasonic Measurement for Industrial Automation
Ultrasonic sensors measure distance by transmitting sound waves towards a target and analysing the returning echo. This non-contact measurement method allows reliable detection of materials that may be difficult to measure using optical sensors, including transparent or visually inconsistent objects.
The UA30CAD35NGM1TI combines continuous analogue measurement with switching control in a single sensor, making it suitable for applications such as distance monitoring, fluid level measurement, diameter measurement and loop control. Its microprocessor-based signal processing improves measurement stability and resistance to industrial interference.
Typical Applications
- Industrial distance measurement systems.
- Tank, hopper and container level monitoring.
- Material handling and conveyor systems.
- Loop control applications.
- Diameter and position measurement.
- Packaging and production machinery.
- Factory automation and PLC monitoring systems.
