Why Choose the Carlo Gavazzi UA30CAD35NKTI Ultrasonic Sensor?
The Carlo Gavazzi UA30CAD35NKTI is an industrial M30 diffuse-reflective ultrasonic sensor combining a proportional 0–10 V DC analogue output with a configurable NPN digital switching output. Designed for non-contact distance, level and position measurement, it uses ultrasonic technology to detect a broad range of targets without relying on colour or optical contrast.
The UA30CAD35NKTI offers a wide 250–3500 mm sensing range and incorporates Teach-In configuration for setting the required sensing points. Its analogue output can be configured with a positive or negative slope, while the NPN open-collector output can operate with normally open or normally closed switching behaviour, providing considerable flexibility for machine automation and process measurement.

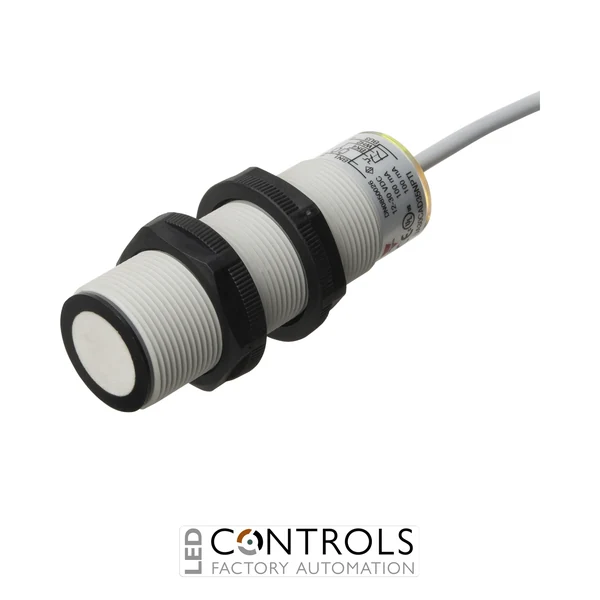

Built around a rugged M30 PBT housing, the UA30CAD35NKTI is the cable-connected version of this sensor configuration and is designed for direct wiring into machinery, junction boxes and control panels. Its IP67 and NEMA 4X protection, industrial temperature capability and integrated electrical protection support dependable performance in demanding installations.
Key Advantages
- Combined 0–10 V DC analogue and NPN digital outputs in one sensor.
- Wide 250–3500 mm sensing range for distance and level applications.
- Teach-In configuration simplifies adjustment of the required detection points.
- Configurable NPN NO / NC switching functionality.
- Analogue output can be configured with positive or negative slope.
- Microprocessor control and digital filtering support stable operation.
- Robust M30 PBT cylindrical housing for industrial machinery.
- Cable connection supports direct wiring into control systems.
- IP67 and NEMA 4X protection for demanding environments.
- Integrated short-circuit, reverse-polarity and overvoltage-pulse protection.
Key Features
- Carlo Gavazzi UA30CAD series ultrasonic sensor.
- Diffuse-reflective ultrasonic sensing principle.
- 250–3500 mm sensing distance.
- 0–10 V DC analogue output.
- NPN open-collector digital output.
- Configurable normally open or normally closed switching function.
- Configurable positive or negative analogue output slope.
- 15–30 V DC supply voltage.
- Digital output current up to 100 mA.
- Maximum digital switching frequency of 2 Hz.
- Teach-In configuration.
- Microprocessor-controlled measurement with digital filtering.
- Yellow output-status LED and green echo-received LED.
- M30 cylindrical PBT housing.
- Cable electrical connection.
- IP67 and NEMA 4X protection.
- Operating temperature from -20 to +70 °C.
Flexible Analogue and Digital Ultrasonic Measurement
The Carlo Gavazzi UA30CAD35NKTI combines continuous ultrasonic distance measurement with a discrete switching function. High-frequency sound is transmitted towards the target and the returning echo is evaluated by the sensor's electronics, allowing objects to be detected without relying on visible-light reflection. This makes the sensor particularly useful for distance, level, diameter and loop-control applications involving targets with varying colours or optical properties.
Its 0–10 V DC analogue output provides proportional distance information to a compatible PLC or controller, while the separate NPN output supplies a configurable switching signal. Teach-In functionality allows the operating points to be adapted to the application, with configurable NO / NC digital behaviour and positive or negative analogue slope providing flexible integration into automated machinery.
Typical Applications
- Non-contact distance measurement.
- Tank, hopper and container level measurement.
- Material roll and coil diameter monitoring.
- Loop and sag control applications.
- Object presence and position detection.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- PLC analogue and digital input applications.
- Industrial machinery and automated production systems.
- OEM equipment requiring combined proportional and switching feedback.
