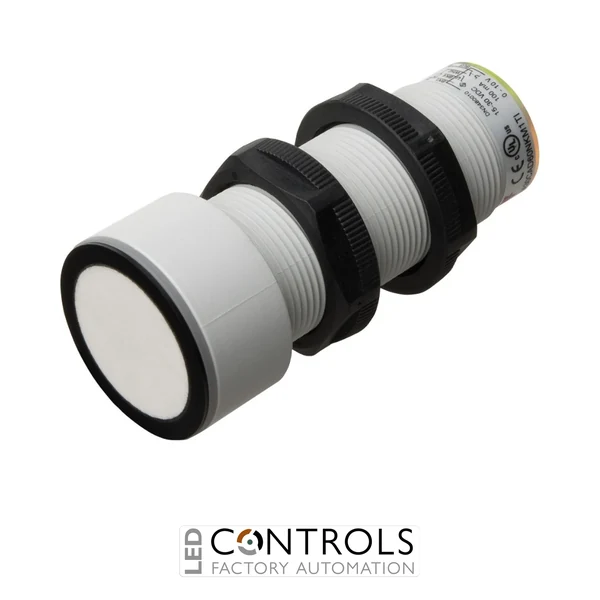

Why Choose the Carlo Gavazzi UA30CAD60PGM1TI Ultrasonic Sensor?
The Carlo Gavazzi UA30CAD60PGM1TI is a robust and versatile diffuse reflective ultrasonic sensor designed for non-contact distance measurement, object detection and level monitoring in industrial automation systems. As part of the Carlo Gavazzi UA30 ultrasonic sensor series, it combines a long sensing range with a 4–20 mA analogue output and PNP digital output for flexible integration with PLCs, controllers and monitoring equipment.
Using ultrasonic sensing technology, the UA30CAD60PGM1TI detects targets by transmitting high-frequency sound pulses and evaluating the returning echo. This makes it suitable for detecting many types of objects and materials without physical contact. Integrated teach-in functionality simplifies configuration, while the combination of analogue and switching outputs enables both continuous measurement and discrete control from a single sensor.
With a rated sensing distance of 350–6000 mm, a 4–20 mA analogue output plus PNP digital output and a 12–30 V DC supply, the UA30CAD60PGM1TI is ideal for applications including tank level measurement, material handling, positioning and industrial process monitoring. Its M30 PBT housing, M12 plug connection and IP67 protection provide reliable installation in demanding industrial environments.
Key Advantages
- Long 350–6000 mm ultrasonic sensing range for industrial measurement and detection.
- Combined 4–20 mA analogue and PNP digital outputs provide continuous measurement and switching functionality.
- Teach-in configuration simplifies sensor set-up and adjustment.
- 12–30 V DC operating voltage suits standard industrial control systems.
- Non-contact ultrasonic technology enables reliable detection of a wide variety of target materials.
- M12 connector provides convenient installation, replacement and maintenance.
- Robust IP67 PBT housing provides dependable protection in industrial environments.
Key Features
- Carlo Gavazzi UA30 series ultrasonic sensor.
- 350–6000 mm rated sensing distance.
- ≤350 mm blind zone.
- 4–20 mA analogue output.
- PNP digital switching output.
- 12–30 V DC rated operating voltage.
- Operating frequency of ≤1 Hz.
- Digital output load current of <100 mA.
- Voltage drop of ≤2.2 V DC.
- Integrated teach-in functionality.
- Yellow and green LED indication.
- Robust M30 PBT housing.
- 4-pin M12 connector for straightforward machine wiring.
- IP67 protection for demanding industrial applications.
Reliable Analogue and Digital Ultrasonic Sensing
Ultrasonic sensors measure distance by transmitting high-frequency sound pulses towards a target and measuring the returning echo. This non-contact operating principle makes the Carlo Gavazzi UA30CAD60PGM1TI particularly useful for industrial applications where continuous distance or level information is required without mechanical contact with the material being measured.
The combination of a 4–20 mA analogue signal and PNP digital output provides considerable control flexibility. The analogue output can transmit continuous measurement information to a PLC or process controller, while the PNP output can simultaneously provide a switching signal for alarms, limits or machine control functions.
Typical Applications
- Tank and vessel level measurement.
- Liquid and bulk material monitoring.
- Industrial distance measurement.
- Object presence and position detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Process monitoring and control systems.
- OEM machinery and industrial automation equipment.
