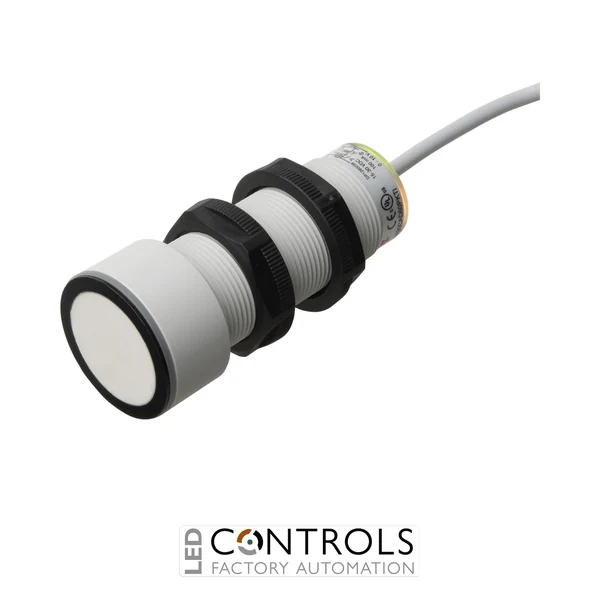

Why Choose the Carlo Gavazzi UA30CAD60PGTI Ultrasonic Sensor?
The Carlo Gavazzi UA30CAD60PGTI is a versatile diffuse reflective ultrasonic sensor designed for reliable non-contact distance measurement, object detection and level monitoring in industrial automation applications. As part of the Carlo Gavazzi UA30CAD ultrasonic sensor series, it combines a long sensing range with a 4–20 mA analogue output and configurable PNP switching output for flexible integration with PLCs, controllers and monitoring systems.
Using ultrasonic sensing technology, the UA30CAD60PGTI detects targets by transmitting high-frequency sound pulses and evaluating the returning echo. This enables reliable detection of many different materials without requiring physical contact with the target. Teach-in adjustment simplifies configuration, while the combination of analogue and digital outputs allows continuous measurement and switching functions to be performed by a single sensor.
With a rated sensing distance of 350–6000 mm, a 4–20 mA analogue output plus PNP switching output and a 12–30 V DC supply, the UA30CAD60PGTI is well suited to level measurement, positioning, material handling and process monitoring. Its cylindrical M30 PBT housing, fixed 2 m cable and IP67 protection provide dependable operation in demanding industrial environments.
Key Advantages
- Long 350–6000 mm ultrasonic sensing range for industrial measurement and detection.
- Combined 4–20 mA analogue and PNP switching outputs provide continuous measurement and digital control.
- Configurable PNP NO/NC switching functionality offers flexible machine integration.
- Teach-in adjustment simplifies configuration of the required sensing points.
- 12–30 V DC operating supply is compatible with standard industrial control systems.
- Non-contact ultrasonic sensing is suitable for detecting a wide variety of target materials.
- Robust IP67 / NEMA 4X construction supports use in demanding industrial environments.
Key Features
- Carlo Gavazzi UA30CAD series ultrasonic sensor.
- 350–6000 mm rated sensing distance.
- ≤350 mm blind zone.
- 4–20 mA analogue current output.
- PNP configurable NO/NC digital output.
- 12–30 V DC rated operating voltage.
- Maximum switching frequency of 1 Hz.
- Digital output load current of <100 mA.
- Voltage drop of ≤2.2 V DC.
- Integrated teach-in functionality for convenient adjustment.
- Yellow and green LED status indication.
- Robust cylindrical M30 PBT housing.
- 2 m fixed cable connection for straightforward machine wiring.
- Short-circuit, reverse-polarity and transient protection for dependable operation.
Reliable Analogue and Digital Ultrasonic Sensing
Ultrasonic sensors measure distance by transmitting high-frequency sound pulses towards a target and evaluating the returning echo. This non-contact sensing principle makes the Carlo Gavazzi UA30CAD60PGTI suitable for industrial applications requiring continuous distance or level information without mechanical contact with the material or object being measured.
The combination of a 4–20 mA analogue output and configurable PNP switching output provides flexible control options. The analogue signal can transmit continuous measurement information to a PLC or process controller, while the PNP output can provide a discrete switching signal for limit detection, alarms or machine control functions.
Typical Applications
- Tank and vessel level measurement.
- Liquid and bulk material monitoring.
- Industrial distance measurement.
- Object presence and position detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Process monitoring and control systems.
- OEM machinery and industrial automation equipment.
