Why Choose the Carlo Gavazzi UA30EAD35PPM1TI Ultrasonic Sensor?

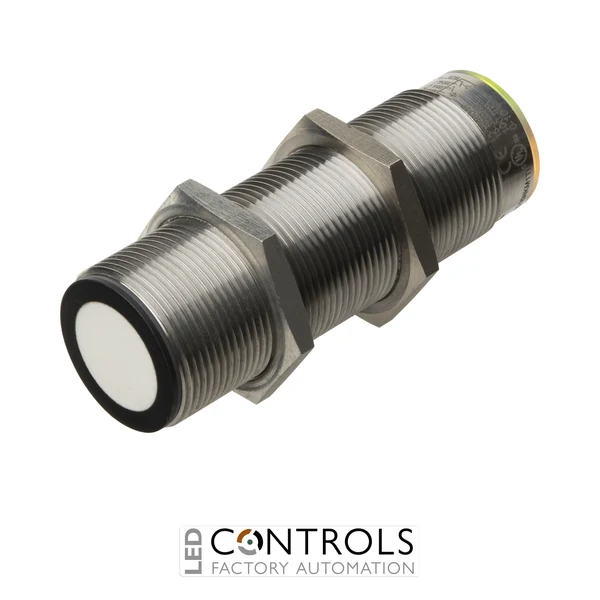

The Carlo Gavazzi UA30EAD35PPM1TI is a high-performance M30 diffuse-reflective ultrasonic sensor with dual PNP switching outputs, designed for reliable non-contact object detection and distance sensing in industrial automation applications. As part of the Carlo Gavazzi UA30 ultrasonic sensor range, it combines a rugged stainless-steel housing with a long sensing range and convenient teach-in functionality.
Ultrasonic technology enables the UA30EAD35PPM1TI to detect a wide variety of objects without relying on their colour, transparency or optical contrast. This makes it particularly useful for applications involving difficult targets where conventional photoelectric sensing may be unsuitable. The sensor provides two PNP digital outputs, allowing flexible switching and control within automated machinery.
With a sensing distance of 350–3500 mm, a 12–30 V DC supply and a pluggable M12 connector, the UA30EAD35PPM1TI provides a robust sensing solution for conveyors, material handling, packaging machinery, level detection and other industrial automation systems.
Key Advantages
- 350–3500 mm sensing range for reliable medium- to long-range object detection.
- Dual PNP switching outputs provide flexible integration with industrial control systems.
- Ultrasonic sensing enables detection largely independent of target colour and optical contrast.
- Rugged AISI 316L stainless-steel M30 housing for demanding industrial environments.
- M12 connector simplifies installation, wiring and sensor replacement.
- Teach-in functionality supports straightforward configuration of the sensing application.
- IP67 protection provides resistance to dust and temporary water ingress.
Key Features
- Carlo Gavazzi UA30 ultrasonic sensor series.
- Diffuse-reflective ultrasonic sensing principle.
- 350–3500 mm rated sensing distance.
- Two PNP digital switching outputs.
- 12–30 V DC rated operating voltage.
- Maximum operating frequency of 2 Hz.
- Load current below 300 mA.
- Teach-in configuration for convenient adjustment.
- Yellow and green LED status indication.
- M12 connector for pluggable electrical connection.
- AISI 316L stainless-steel housing.
- Integrated short-circuit, reverse-polarity and transient protection.
Reliable Ultrasonic Detection for Industrial Automation
Ultrasonic sensors detect targets by transmitting high-frequency sound waves and evaluating the reflected signal. Because detection does not depend primarily on visible light or surface colour, ultrasonic sensing is particularly useful for objects that can be challenging for optical sensors, including materials with varying colours, finishes or transparency.
The UA30EAD35PPM1TI combines this sensing principle with two PNP switching outputs and a durable stainless-steel enclosure. Its long detection range, teach-in capability and M12 connection make it well suited to machine builders and automation engineers requiring dependable non-contact detection with straightforward installation and configuration.
Typical Applications
- Industrial object detection and positioning.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Presence and absence detection.
- Level and material monitoring applications.
- Automated storage and handling equipment.
- OEM machinery and industrial automation systems.
