Why Choose the IMO UK1C/G2-0A Ultrasonic Sensor?

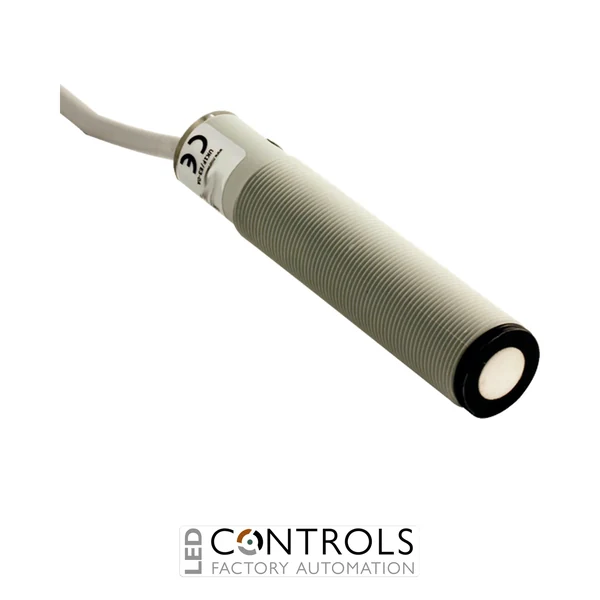

The IMO UK1C/G2-0A is a compact and reliable ultrasonic proximity sensor designed for accurate non-contact distance measurement and object detection in industrial automation applications. As part of the IMO UK1 ultrasonic sensor series, it provides dependable sensing performance for machinery, process control and automated production systems.
This M18 cylindrical ultrasonic sensor uses ultrasonic measurement technology to detect objects without relying on colour, transparency or surface contrast. Its analogue output, Teach-In configuration, compact PBT housing and IP67 protection make it suitable for demanding industrial environments.
With a sensing range of 80–900 mm, a 4–20 mA analogue output, 10–30 V DC supply, 2 m pre-cabled connection and an M18 threaded housing, the IMO UK1C/G2-0A is ideal for precise distance measurement, level monitoring and industrial sensing applications.
Key Advantages
- Compact M18 ultrasonic sensor designed for industrial automation.
- 80–900 mm sensing range for reliable non-contact measurement.
- 4–20 mA analogue output for PLC and process control integration.
- Ultrasonic sensing technology suitable for different materials and surfaces.
- Teach-In adjustment for simple configuration and commissioning.
- IP67 protection rating for reliable industrial operation.
Key Features
- IMO UK1 ultrasonic sensor series.
- Model UK1C/G2-0A.
- M18 threaded cylindrical housing.
- 80–900 mm adjustable sensing distance.
- 4–20 mA analogue output.
- 2 m direct cable connection.
- Teach-In programming function.
- PBT plastic housing construction.
- LED status indication.
Reliable Distance Measurement for Industrial Automation
Ultrasonic sensors such as the IMO UK1C/G2-0A provide reliable non-contact detection by measuring reflected ultrasonic signals from target objects. This technology enables consistent distance measurement where traditional optical sensors may be affected by object colour, transparency or surface finish.
The UK1 series is designed for automation engineers and machine builders requiring dependable sensing solutions for positioning, measurement and process control. Its analogue output allows direct connection to PLCs, controllers and industrial monitoring systems.
Typical Applications
- Industrial distance measurement systems.
- Tank and level monitoring applications.
- Conveyor and material handling equipment.
- Object detection and positioning systems.
- Machine automation and process control.
- OEM industrial sensing systems.
