Why Choose the IMO UK6C/HN-0E Ultrasonic Sensor?

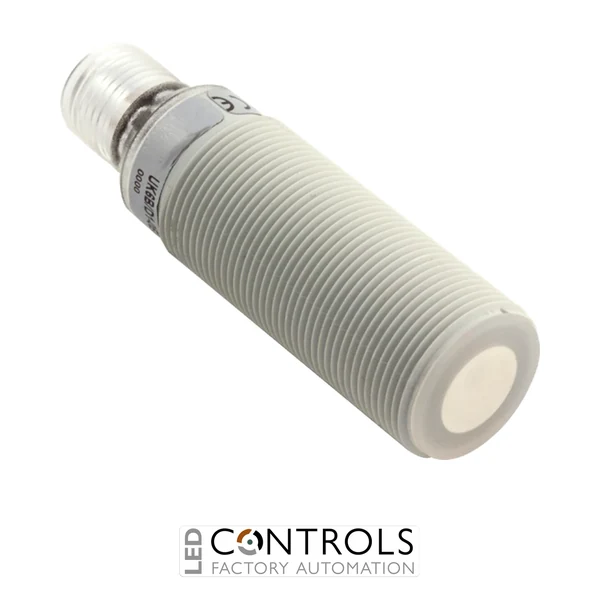

The IMO UK6C/HN-0E is a compact M18 ultrasonic proximity sensor designed for reliable non-contact object detection in industrial machinery and automation systems. As part of the IMO UK6 short-body ultrasonic sensor series, it uses diffuse ultrasonic sensing technology to detect objects without requiring physical contact.
The UK6C/HN-0E combines a compact plastic M18 housing with an NPN normally open / normally closed digital output. Its sensing parameters can be configured using the teach-in facility, providing flexibility when setting up detection points for different machinery and automation applications.
With a sensing range of 60–800 mm, a 10–30 V DC supply and an M12 plug connection, the UK6C/HN-0E provides a versatile sensing solution for production equipment, packaging machinery, conveyors and material handling systems. Its short-body construction helps simplify installation where mounting space is restricted.
Key Advantages
- Compact M18 short-body ultrasonic sensor for industrial automation.
- 60–800 mm sensing range for medium-range object detection.
- NPN NO/NC digital output for integration with compatible PLCs and control systems.
- 10–30 V DC operating voltage suitable for standard industrial automation supplies.
- Ultrasonic sensing enables non-contact detection of a wide range of objects.
- Teach-in functionality simplifies configuration of the required detection point.
- M12 plug connection enables convenient installation and replacement.
- Compact plastic M18 housing is ideal for space-restricted machinery.
Key Features
- IMO UK6 short-body ultrasonic sensor series.
- M18 cylindrical housing.
- Diffuse ultrasonic detection principle.
- 60–800 mm sensing distance.
- NPN digital switching output.
- NO/NC configurable switching function.
- 10–30 V DC operating supply.
- Teach-in configuration for application setup.
- M12 plug connection.
- Compact short-body construction.
- Plastic sensor housing.
- Suitable for industrial presence, position and object detection.
Reliable Non-Contact Detection for Industrial Automation
Ultrasonic sensors such as the IMO UK6C/HN-0E operate by transmitting high-frequency sound pulses and detecting the echoes reflected from a target. This enables reliable non-contact detection without depending on the target being metallic, making ultrasonic sensing suitable for many materials encountered in automated manufacturing and handling systems.
The UK6 series combines this versatile sensing principle with a compact M18 short-body format. The UK6C/HN-0E provides a medium-range sensing window, configurable NPN switching output and convenient M12 connection, making it particularly suitable for integration into modern PLC-controlled machinery.
Typical Applications
- Industrial machinery object detection.
- Packaging and production equipment.
- Conveyor and material handling systems.
- Presence and position detection.
- Container, box and package detection.
- Automated assembly equipment.
- PLC-controlled production machinery.
- Material presence monitoring.
- OEM automation systems and machine building.
