Why Choose the IMO UK6C/HN-1A Ultrasonic Sensor?

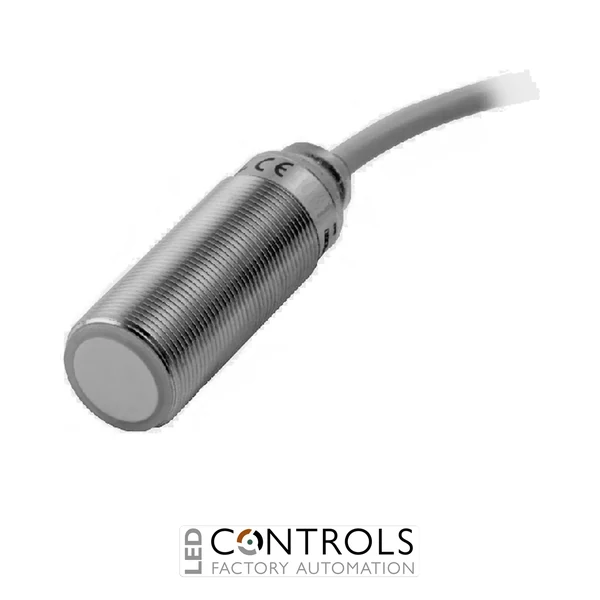

The IMO UK6C/HN-1A is a compact M18 ultrasonic proximity sensor designed for reliable non-contact object detection in industrial machinery and automation systems. As part of the IMO UK6 short-body ultrasonic sensor series, it combines diffuse ultrasonic sensing with a durable metal housing for demanding industrial applications.
The UK6C/HN-1A provides an NPN normally open / normally closed digital output and incorporates a teach-in connection for convenient configuration of the required sensing point. Ultrasonic technology allows the sensor to detect a wide variety of objects without physical contact, making it useful where target material, colour or surface appearance may vary.
With a sensing range of 60–800 mm, a 10–30 V DC supply and an integrated 2 m cable, the UK6C/HN-1A provides a versatile solution for production equipment, packaging machinery, conveyors and material handling systems. Its robust AISI 316L stainless steel housing combines compact M18 dimensions with excellent durability for industrial installations.
Key Advantages
- Compact M18 short-body ultrasonic sensor for industrial automation.
- 60–800 mm sensing range for medium-range object detection.
- NPN NO/NC digital output for integration with compatible PLCs and control systems.
- 10–30 V DC operating voltage suitable for industrial automation supplies.
- Ultrasonic sensing provides reliable non-contact object detection.
- Teach-in functionality simplifies configuration of the required sensing point.
- Robust AISI 316L stainless steel housing for demanding environments.
- Integrated 2 m cable provides straightforward machine wiring.
Key Features
- IMO UK6 short-body ultrasonic sensor series.
- M18 cylindrical metal housing.
- Diffuse ultrasonic detection principle.
- 60–800 mm sensing distance.
- NPN digital switching output.
- NO/NC configurable switching function.
- 10–30 V DC operating supply.
- Teach-in cable for sensing-point configuration.
- 2 m fixed cable connection.
- AISI 316L stainless steel housing.
- Temperature-compensated ultrasonic sensing.
- Short-circuit protected digital output.
- Reverse-polarity and transient protection.
Reliable Non-Contact Detection for Industrial Automation
Ultrasonic sensors such as the IMO UK6C/HN-1A operate by transmitting high-frequency sound pulses and detecting the echoes reflected from a target. This enables reliable non-contact detection without depending on the target being metallic, making ultrasonic sensing suitable for many materials encountered in automated manufacturing and handling systems.
The UK6 series combines this versatile sensing principle with a compact M18 short-body format. The UK6C/HN-1A adds a robust stainless steel housing, configurable NPN switching output and cable connection, making it particularly suitable for integration into PLC-controlled industrial machinery where dependable object detection and durable construction are required.
Typical Applications
- Industrial machinery object detection.
- Packaging and production equipment.
- Conveyor and material handling systems.
- Presence and position detection.
- Container, box and package detection.
- Automated assembly equipment.
- PLC-controlled production machinery.
- Material presence monitoring.
- OEM automation systems and machine building.
