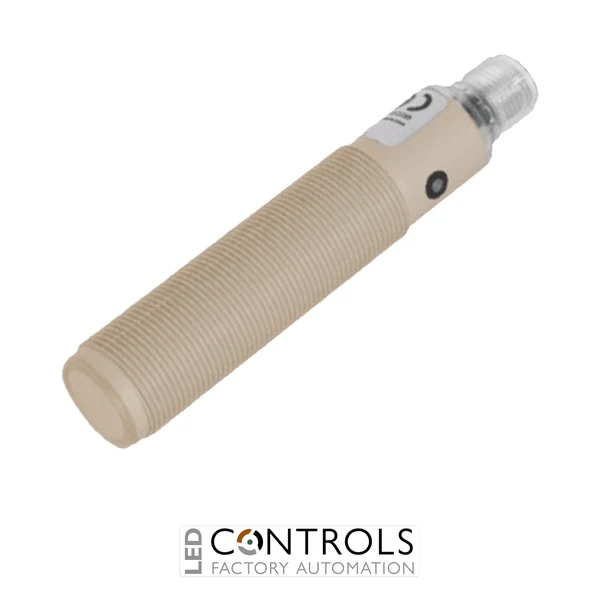

Why Choose the IMO UKR1A/GW-0E Ultrasonic Switch?
The IMO UKR1A/GW-0E is a compact M18 ultrasonic sensor with background suppression designed for reliable non-contact object detection in industrial automation and control applications. As part of the IMO UKR1 ultrasonic sensor series, it uses ultrasonic sensing with teach-in adjustment to detect targets while suppressing a fixed background.
The UKR1A/GW-0E features a plastic PBT M18 housing, PNP NO/NC digital output and an M12 plug connection. Its background suppression function allows the sensor to establish a fixed background reference, helping detect targets reliably even where the background may otherwise interfere with conventional sensing.
With a nominal sensing distance of 400 mm and a minimum sensing distance of 100 mm, the UKR1A/GW-0E is well suited to machinery, conveyors, packaging equipment and industrial automation systems requiring compact and dependable ultrasonic object detection.
Key Advantages
- Compact M18 ultrasonic sensor with background suppression.
- 100–400 mm sensing range for flexible object detection.
- PNP NO/NC output for straightforward industrial control integration.
- Teach-In button allows quick background reference adjustment.
- M12 plug connection simplifies installation and servicing.
- IP67 protection supports use in demanding industrial environments.
Key Features
- IMO UKR1 ultrasonic sensor series.
- M18 PBT plastic housing.
- Background suppression for reliable target detection.
- 400 mm nominal sensing distance.
- 100 mm minimum sensing distance.
- PNP NO/NC digital output.
- 10–30 V DC operating voltage.
- M12 plug cable exit.
- Teach-In button for set-point adjustment.
- 10 Hz switching frequency.
- Short-circuit, induction and voltage-reversal protection.
Reliable Ultrasonic Background Suppression for Industrial Automation
Ultrasonic sensors such as the IMO UKR1A/GW-0E use ultrasonic waves to detect objects without physical contact. The background suppression function allows a fixed background to be taught to the sensor, providing a reference distance for reliable target detection in industrial applications.
The UKR1A/GW-0E uses a Teach-In button to acquire the background position. Its effective operating distance is based on the taught background distance with a 10% reduction, providing hysteresis that helps maintain reliable detection when the background is subject to vibration during normal machine operation.
Typical Applications
- Industrial object presence detection.
- Material handling and conveyor systems.
- Packaging and production machinery.
- Machine automation and control systems.
- Position detection and object monitoring.
- Applications requiring background suppression.
